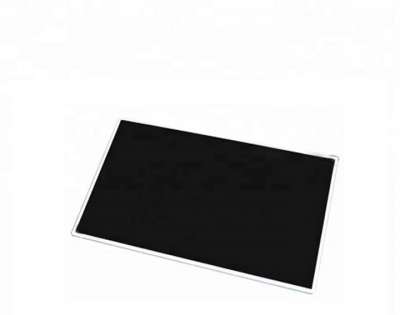

1、AUO G320ZAN02.2 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G320ZAN02.2 |
Diagonal Size | 32" | Application | Industrial,Medical Imaging,Outdoor High Brightness | |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration Level | 1.0G (9.8 m/s²) | |
Specific Features : | DCI-P3,Adobe RGB,sRGB,High Brightness,WLED Backlight,With LED Driver,10bit, Matte | |||
2、 AUO G320ZAN02.2 Mechanical Details
Pixel Features : | Pixel Format | 3840(RGB)×2160, UHD | Dot Pitch (W×H) | 0.0615×0.1845 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.1845×0.1845 mm [137PPI] | |
Mechanical Size : | Display Area (mm) | 708.48(W)×398.52(H) mm | Bezel Opening | 714.48(W)×404.52(H) mm |
Outline Dim.(mm) | 727.3(W)×424.5(H) mm | Overall Depth | 20.48±0.5 mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | ||
Holes & Brackets : | Rear mounting holes | |||
Other Detail : | Mass | 4.63Kgs (Typ.) | Surface | Antiglare |
3、AUO G320ZAN02.2 Optical Details
Basic Information : | Brightness | 850 cd/m² (Typ.) | Contrast Ratio | 1800:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 22 (Typ.)(Tr+Td) (ms) | |
Color Performance : | Chromaticity | X:0.313 Y:0.329 | Support Color | 1.07B (10-bit) |
Color Temperature | 6485K | White Uniformity | - | |
1931 Color Gamut : | NTSC Ratio | 110% | sRGB | 100% coverage |
Adobe RGB | 100% coverage | DCI-P3 | 98% coverage | |
Rec.2020 | 82% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4、AUO G320ZAN02.2 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 133W (Max.) |
5、AUO G320ZAN02.2 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 30K(Min.) (Hours) | |||
Replacement | - | Lamp Shape | - | Position | Edge light type | ||||
Interface Features : | Type | Connector | Position | - | Backlight Driver : | With LED Driver | |||
Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | |||
JST | S14B-PH-SM6-K-TB | 2 pcs | 2.0 mm | 14 pins | |||||
Driver Electrical : | Input Current | 3.63A (Typ.) | Input Voltage | 24±2.4V | |||||
Consumption | 87.3/99W (Max.) | ||||||||
6、AUO G320ZAN02.2 Interface Detail
Signal Systerm : | eDP (4 Lanes), HBR2 (5.4G/lane) | Consumption | 27.6/34W (Typ./Max.) | |||||||
Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 2.3/2.83A (Typ./Max.) | ||||||
Interface Features : | Type | Connector | Position | - | ||||||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | ||||
JAE | FI-RE51S-HF | 1pcs | 0.5 mm | 51 pins | ||||||
7、AUO G320ZAN02.2 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
4 | 820×220×535 | 21.50 |
