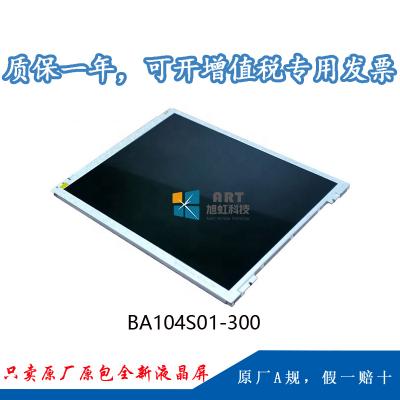

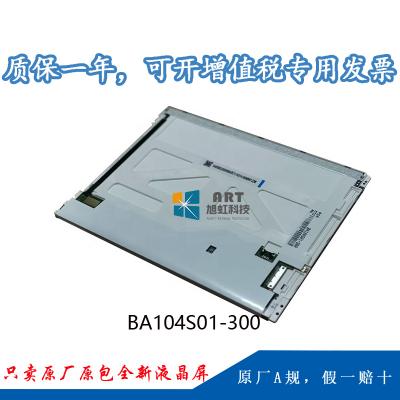

BOE BA104S01-300 Application Details
| Basic Detail : |
Panel Brand |
BOE |
Model Name |
BA104S01-300 |
| Panel Type |
a-Si TFT-LCD , LCM |
Another Name |
|
| Panel Size |
10.4” |
Designed For |
Industrial，Medical Imaging |
| Maximum Ratings : |
OP Temperature |
-20 ~ 70 °C |
ST Temperature |
-30 ~ 80 °C |
| RoHS |
RoHS |
Vibration Level |
|
| Features : |
WLED Backlight，With LED Driver, 6/8bit |
BOE BA104S01-300 Optical Details
| Basic Information : |
Luminance |
350 cd/m² (Typ.) |
Contrast Ratio |
800:1 (Typ.) (Transmissive) |
| Good View at |
12 o'clock |
Response Speed |
30 (Typ.)(Tr+Td) (ms) |
| Viewing Angle |
80/80/65/75 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.284; Wy:0.320 |
Display Colors |
262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature |
8455K |
White Variation |
1.25/1.43 (Typ./max.)(9 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
57% |
sRGB |
80% coverage |
| Adobe RGB |
60% coverage |
DCI-P3 |
60% coverage |
| Rec.2020 |
43% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE BA104S01-300 Mechanical Details
| Pixel Features : |
Number of Pixel |
800(RGB)×600 [SVGA] |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch |
0.088×0.264 mm (H×V) |
Pixel Pitch (W×H) |
0.264×0.264 mm (H×V) [96PPI] |
| Physical Size : |
Active Viewing(mm) |
211.2×158.4 mm (H×V) |
Bezel Area (mm) |
215.0×162.0 mm (H×V) |
| Outline Dim. (mm) |
236×176.9 mm (H×V) |
Outline Depth |
5.6±0.3 mm |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
4:3 (H:V) |
Orientation |
Landscape type |
| Holes & Brackets : |
Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel |
| Other Features : |
Weight |
300g (Typ.) |
Surface |
Clear |
BOE BA104S01-300 Electronics Details
| Frame Frequency : |
60Hz |
| Reverse Scan : |
No |
| Power Consumption : |
3.366W (Typ.) |
BOE BA104S01-300 Interface Details
| Signal Systerm : |
LVDS (1 ch,6/ 8-bit) |
| Signal Electrical : |
Voltage Input |
3.3V (Typ.) |
Current Input |
150±30mA |
| Consumption |
0.4/0.495/0.59W (Min./Typ./Max.) |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Pin Assignment |
| STM |
MSB24013P20 |
1.0mm |
20pins |
1 pcs |
|
BOE BA104S01-300 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
6S4P |
Position |
Edge light type (Top side) |
| Exchange |
- |
Lamp Shape |
Array |
Lamp Life |
30K(Typ.) (Hours)
|
| Lamp Electrical : |
Voltage Supply |
19.2/19.8V (Typ./Max.) |
Current Supply |
25mA (Typ.) |
| Consumption |
1.92/1.98W (Typ./Max.) |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Lamp Driver |
With LED Driver |
| Interface Detail : |
Brand |
Model |
Amount |
Pin Pitch |
Pin Amount |
Pin Assignment |
| STM |
MSB24038P5 |
1 pcs |
1.25 mm |
5 pins |
|
| Driver Electrical : |
Voltage Input |
12.0±0.5V |
Current Input |
120mA (Typ.) |
| Consumption |
1.98W (Max.) |
BOE BA104S01-300 Carton Details
| Package Carton : |
Amount |
Net Weight |
Carton Size (L×W×H) |
| 28 pcs / box |
- |
500×400×300 mm |
