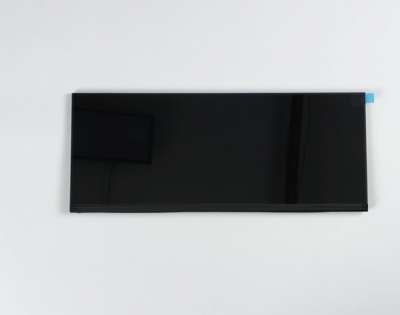

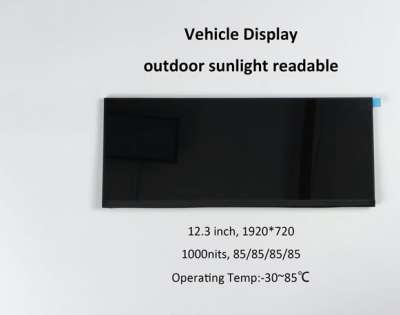

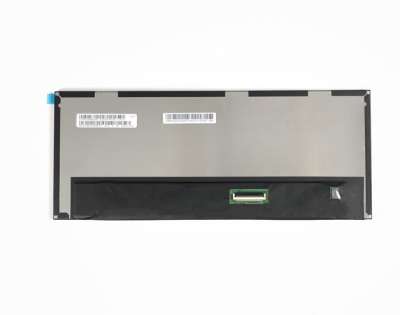

  • 12.3 inch 1920x720 M123AWF4 R0 LCD Monitors Touch Screen Display Parts
  • 12.3 inch 1920x720 M123AWF4 R0 LCD Monitors Touch Screen Display Parts
  • 12.3 inch 1920x720 M123AWF4 R0 LCD Monitors Touch Screen Display Parts
  • Model:M123AWF4 R0
  • Brand:IVO
  • Size:12.3inch
  • Resolution:1920(RGB)×720
  • Brightness:1000 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ 85 °C
  • Production State: In production
  • Click For Price
  • Technical Parameters
  • IVO M123AWF4 R0 Application Details

    Basic Detail :ManufacturerIVOModel NameM123AWF4 R0
    Panel Typea-Si TFT-LCD , LCM
    Panel Size
    12.3 inch
    Designed ForOutdoor High Brightness,Automotive Display
    Maximum Ratings :OP Temperature-30 ~ 85 °CST Temperature-40 ~ 90 °C
    RoHSRoHSVibration Level2.9G (28.4 m/s²)
    Features :Wide Temperature,3G Vibration,Ultra High Brightness,WLED Backlight,Bar Display


    IVO M123AWF4 R0 Optical Details

    Basic Information :Luminance1000 cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed25 (Typ.)(Tr+Td) ms
    Viewing Angle


    85/85/85/85 (Typ.)(CR≥10)Operating ModeIPS, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.300; Wy:0.320Support Color16.7M (8-bit)
    Color Temperature7351KWhite Variation1.25/1.43 (Typ./Max.)(9 points)
    1931 Color Gamut :NTSC Ratio75%sRGB97% coverage
    Adobe RGB75% coverageDCI-P378% coverage
    Rec.202056% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmissivity-


    IVO M123AWF4 R0 Mechanical Details

    Pixel Features :Number of Pixel1920(RGB)*720ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.0507*0.1521 mmPixel Pitch(W×H)0.1521*0.1521 mm  [167PPI]
    Physical Size :Active Viewing292.032(W)*109.512(H) mmOverall Dim.299.03(W)*123.012(H) mm
    Bezel Opening

    -Overall Depth5.9/8.02 (Typ./Max.) mm

    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)8:3Shape Style
    Fixation :Without
    Other Detail :Mass349/380g (Typ./Max.)SurfaceHard coating (3H)


    IVO M123AWF4 R0 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :No
    Total Consumption :14.48W (Max.)


    IVO M123AWF4 R0 Interface Details

    Signal Electrical :Input Current460mA (Max.)Input Voltage
    3.3V (Typ.)
    Consumption1.38W (Max.)Signal InterfaceLVDS (2 ch, 8-bit)
    Interface Features :Position- Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
     BJD-101049-205050 50 pins1 pcs


    IVO M123AWF4 R0 Lightting Details

    Lamp Features :

    Lamp TypeWLEDAmount10S4PPositionEdge light type
    Exchange-Lamp Shape4 stringsLamp Life30K(Min.) (Hours)
    Lamp Electrical :

    Input Voltage36.3V (Max.)Input Current90mA (Typ.)
    Consumption13.1W (Typ.)
    Interface Features :Position- Physical TypeIncluded in signal interface
    Backlight Driver :No


    IVO M123AWF4 R0 Packing Details

    Package Box :AmountSize (L*W*H)Weight
    40 pcs / box--
