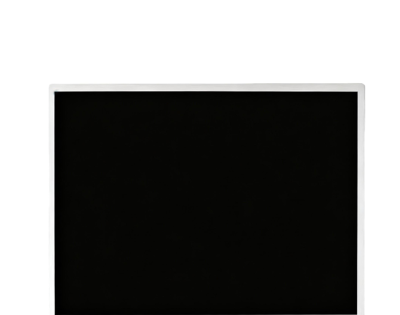

1.Innolux G121ACE-PH1 Application Details
Basic Information : | Brand | INNOLUX | Model | G121ACE-PH1 |
Type | a-Si TFT-LCD , CELL | Used For | Industrial |
Screen Size | 12.1 inch |
|
|
Environment : | Storage Temp. | -30 ~ 85 °C | Operating Temp. | -30 ~ 85 °C |
RoHS | RoHS |
|
|
Typical Features : | Wide Temperature，180°Reverse，6/8bit，Matte |
2.Innolux G121ACE-PH1 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] |
Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | - |
Outline Dim.(mm) | 255.35(H) × 196.28(V) | Depth(mm) | 1.27±0.1 |
Outline Features : | Form Style | Flat Rectangle | Plate Thickness | 0.50+0.50 mm |
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
Other Spec : | Weight | - | Treatment | Antiglare, Hard coating (3H) |
3.Innolux G121ACE-PH1 Optical Details
Basic Information : | Luminance(cd/m²) | 0 | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6485K | White Uniformity | - |
1931 Color Gamut : | NTSC Ratio | - | sRGB | 91% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 72% coverage |
Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | No | Transmissivity | 4.34% (Typ.)(with Polarizer) |
4.Innolux G121ACE-PH1 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Driver IC : | 2 source + 2 gate chips |
5.Innolux G121ACE-PH1 Interface Detail
Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 87.96/105.64mA (Typ./Max.) |
Signal Type : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - |
Interface Features : | Position | - |
| Type | Connector |
|
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSAK24025P30MB | 0.5 mm | 30 pins | 1 pcs |
|
6.Innolux G121ACE-PH1 Backlight Details
Backlight Features : | Type | No B/L | Quantity | - | Position | - |
Replacement | - | Shape | - | Life Time | - |
7.Innolux G121ACE-PH1 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 23 | 1 | 475×390×320 | 8.70 | 0.0593 |
