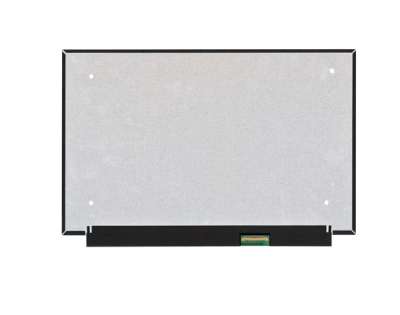

1.Innolux GK133VB-01B Application Details
Basic Information : | Brand | INNOLUX | Model | GK133VB-01B |
Type | a-Si TFT-LCD , LCM | Used For | Industrial，Medical Imaging |
Screen Size | 13.3 inch |
|
|
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Rating | 1.14G (11.17 m/s²) |
Typical Features : | DCI-P3,Srgb,Ultra High Brightness，Mini WLED Backlight，With LED Driver， |
2.Innolux GK133VB-01B Mechanical Details
Pixel Features : | Resolution | 3840(RGB)×2160 [UHD] | Dot Pitch(mm) | 0.0255×0.0765 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.0765×0.0765 mm (H×V) [332PPI] |
Mechanical Size : | Active Area(mm) | 293.76×165.24 mm (H×V) | Bezel Area(mm) | - |
Outline Dim.(mm) | 314.4×188.3 mm (H×V) | Depth(mm) | 8.95/13.57 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Plate Thickness | 0.50+0.50 mm |
Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
Other Spec : | Weight | - | Shape Style |
|
Holes & Brackets : | Rear mounting poles (4-M3) |
Other Features : | Weight | 690g (Max.) | Surface | Hard coating |
3.Innolux GK133VB-01B Optical Details
Basic Information : | Luminance | 1300 cd/m² (Min.) | Contrast Ratio | 1100:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 35 (Max.)(Tr+Td) (ms) |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | - |
Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) |
1931 Color Gamut : | NTSC Ratio | 96% | sRGB | 100% coverage |
Adobe RGB | 90% coverage | DCI-P3 | 93% coverage |
Rec.2020 | 72% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4.Innolux GK133VB-01B Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 25.312W (Max.) |
5.Innolux GK133VB-01B Interface Detail
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 520/598mA (Typ./Max.) |
Signal Type : | eDP (4 Lanes), eDP1.4 | Consumption | 1.802W (Max.) |
Interface Features : | Position | - |
| Type | Connector |
|
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
I-PEX | 20849-030E-01 | 0.5 mm | 30 pins | 1 pcs |
|
6.Innolux GK133VB-01B Backlight Details
Backlight Features : | Lamp Shape | - | Lamp Type | Mini LED | Life Time | 30K(Min.) (Hours) |
Replacement | - | Amount | - | Position | Direct light type |
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
FCN | JH2-D4-143N | 2.0 mm | 14 pins | 1 pcs |
|
Driver Electrical : | Voltage Input | 11.6/14.5V (Typ./Max.) | Current Input | 1.41/1.62/1.92mA (Min./Typ./Max.) |
Consumption | 20.5/22.3/23.5W (Min./Typ./Max.) |
7.Innolux GK133VB-01B Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 9 | 1 | 530×367×260 | N/A | 0.0506 |
