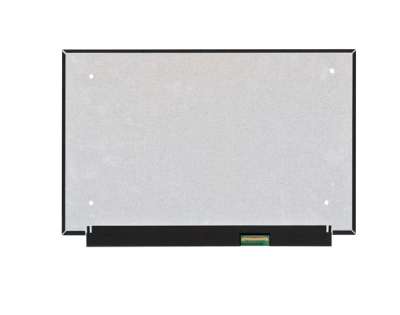

1.Innolux N133DCE-GP1 Application Details
Basic Information : | Brand | INNOLUX | Model | N133DCE-GP1 |
Type | a-Si TFT-LCD , CELL | Used For | Industrial，Laptop |
Screen Size | 13.3 inch |
|
|
Environment : | Storage Temp. | -20 ~ 60 °C | Operating Temp. | 0 ~ 50 °C |
RoHS | RoHS | Vibration Rating | 1.5G (14.7 m/s²) |
Typical Features : | Srgb,WLED Backlight，With LED Driver，Reverse I/F，Glossy，AMD FreeSync |
2.Innolux N133DCE-GP1 Mechanical Details
Pixel Features : | Resolution | 3840(RGB)×2160 [UHD] | Dot Pitch(mm) | 0.0255×0.0765 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.0765×0.0765 mm (H×V) [332PPI] |
Mechanical Size : | Active Area(mm) | 293.76×165.24 (H×V) | Bezel Area(mm) | - |
Outline Dim.(mm) | 299.46×186.67 (H×V) | Depth(mm) | 1.86/2.0 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Plate Thickness | 0.50+0.50 mm |
Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
Other Spec : | Weight | - | Shape Style | Slim (PCBA Flat, T≤3.2mm) |
Holes & Brackets : | Without |
Other Features : | Weight | 151/160g (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
3.Innolux N133DCE-GP1 Optical Details
Basic Information : | Luminance | 340 cd/m² (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 15/14(Typ.)(Tr/Td) |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) |
1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 100% coverage |
Adobe RGB | 74% coverage | DCI-P3 | 74% coverage |
Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.Innolux N133DCE-GP1 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 4.4W (Max.) |
5.Innolux N133DCE-GP1 Interface Detail
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 405/454mA (Typ./Max.) |
Signal Type : | eDP (4 Lanes), eDP1.3 | Consumption | 1.85W (Typ.) |
Interface Features : | Position | Right of Board |
| Type | Connector |
|
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
I-PEX | 20455-040E-12 | 0.5 mm | 40 pins | 1 pcs |
|
6.Innolux N133DCE-GP1 Backlight Details
Backlight Features : | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
Replacement | - | Amount | - | Position | Edge light type |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | 225/236/242mA (Min./Typ./Max.) |
Consumption | 2.9W (Max.) |
7.Innolux N133DCE-GP1 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 40 | 1 | 540×450×320 | N/A | 0.0778 |
