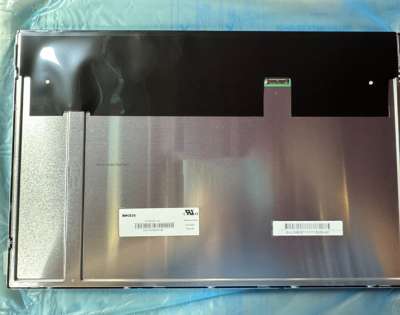

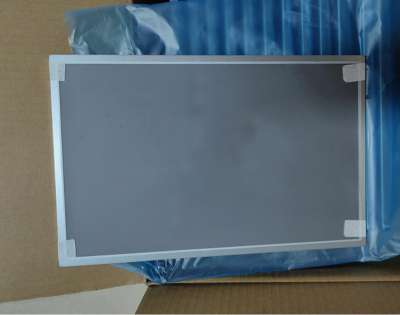

1.Innolux G154ICE-LH1 Application Details
Basic Information : | Brand | INNOLUX | Model | G154ICE-LH1 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial | |
Screen Size | 15.4 inch | |||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -30 ~ 80 °C |
RoHS | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
Typical Features : | Wide Temperature,WLED Backlight,Life≥50K hours,With LED Driver,Upside I/F,180°Reverse,6/8bit,Matte | |||
2.Innolux G154ICE-LH1 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch | 0.08625×0.25875 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.25875×0.25875 (H×V) [98PPI] | |
Mechanical Size : | Active Area(mm) | 331.2(H) × 207(V) | Bezel Area(mm) | 334.5(H) × 210.3(V) |
Outline Dim.(mm) | 352(H) × 230(V) | Depth(mm) | 9/10 (Typ./Max.) | |
Outline Features : | Form Style | Flat Rectangle | Shape Style | - |
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
Other Spec : | Weight | 771/809g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
3.Innolux G154ICE-LH1 Optical Details
Basic Information : | Luminance | 450cd/m² (Min.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6485K | Uniformity | 1.25/1.43 (Typ./Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 72% | sRGB Coverage | 94% |
Adobe RGB Coverage | 73% | DCI-P3 Coverage | 74% | |
Rec.2020 Coverage | 54% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.Innolux G154ICE-LH1 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Total Consumption: | 12.2W (Typ.) |
5.Innolux G154ICE-LH1 Interface Detail
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 790/950mA (Typ./Max.) | ||
Signal Type : | LVDS (1 ch,8-bit) | Power Consumption | - | |||
Interface Features : | Position | Upper right of panel | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
I-PEX | 20455-030E-76 | 0.5mm | 30 pins | 1 pcs | LVDS-30P1C8B-103A | |
6.Innolux G154ICE-LH1 Backlight Details
Backlight Features : | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) | |||||
Replacement | - | Amount | - | Position | Edge light type (Bottom side) | ||||||
Interface Features : | Position | - | Type | Included in signal interface | |||||||
Backlight Driver : | With LED Driver | ||||||||||
Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.8±0.2A | |||||||
Consumption | 9.6/12W (Typ./Max.) | ||||||||||
7.Innolux G154ICE-LH1 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
Carton | 13 | 1 | 465×362×314 | 12.1 | 0.0529 |
