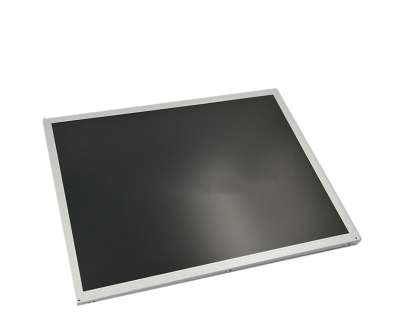

1.Innolux G150XCE-LM1 Application Details
Basic Information : | Brand | INNOLUX | Model | G150XCE-LM1 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 15.0 inch |
|
|
Environment : | Storage Temp. | -30 ~ 70 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Rating | - |
Typical Features : | WLED Backlight，Life≥50K hours，6/8bits，Matte |
2.Innolux G150XCE-LM1 Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch | 0.099×0.297 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 mm (H×V) [85PPI] |
Mechanical Size : | Active Area | 304.128×228.096 mm (H×V) | Bezel Area(mm) | - |
Outline Dim. | 314.6×237.55 mm (H×V) | Depth(mm) | - |
Outline Features : | Form Style | Flat Rectangle | Plate Thickness | 0.50+0.50 mm |
Aspect Ratio | 4:3 (H:V) | Orientation | Antiglare, Hard coating (3H) |
Other Spec : | Weight | - | Shape Style |
|
3.Innolux G150XCE-LM1 Optical Details
Basic Information : | Luminance | 400cd/m² (Min.) | Contrast Ratio | 2500:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88(Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | - |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6485K | Uniformity | - |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4.Innolux G150XCE-LM1 Electronics Details
5.Innolux G150XCE-LM1 Interface Detail
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - |
Signal Type : | LVDS (1 ch, 6/8-bit) | Power Consumption | - |
Interface Features : | Position | - |
| Type | Connector |
|
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSB240420HDA | 1.25mm | 20 pins | 1 pcs |
|
6.Innolux G150XCE-LM1 Backlight Details
Backlight Features : | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) |
Replacement | - | Amount | - | Position | Edge light type |
