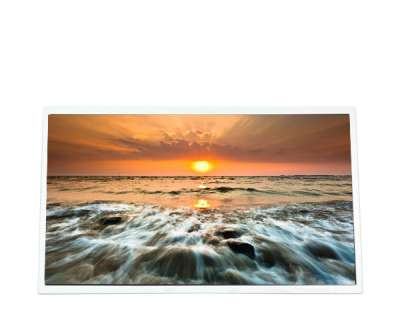

1.Innolux G150XJE-DM1 Application Details
Basic Information : | Brand | INNOLUX | Model | G150XJE-DM1 |
Type | a-Si TFT-LCD , CELL | Used For | Industrial |
Screen Size | 15.0 inch |
|
|
Environment : | Storage Temp. | -30 ~ 70 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Rating | - |
Typical Features : | Matte |
2.Innolux G150XJE-DM1 Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch | 0.099×0.297 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 mm (H×V) [85PPI] |
Mechanical Size : | Active Area | 304.128×228.096 mm (H×V) | Bezel Area(mm) | - |
Outline Dim. | 314.6×237.55 mm (H×V) | Depth(mm) | 1.29 (Typ.) mm |
Outline Features : | Form Style | Flat Rectangle | Plate Thickness | 0.50+0.50 mm |
Aspect Ratio | 4:3 (H:V) | Orientation | Antiglare, Hard coating (3H) |
Other Spec : | Weight | - | Shape Style |
|
3.Innolux G150XJE-DM1 Optical Details
Basic Information : | Luminance | 0cd/m² (Min.) | Contrast Ratio | 2500:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88(Typ.)(CR≥10) | Display Mode | NPVA, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 16/7 (Typ.)(Tr/Td) ms |
Color Performance : | White Coordinate | Wx:0.316; Wy:0.355 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6174K | Uniformity | - |
1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 92% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 73% coverage |
Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | No | Transmittance | 4.5% (Typ.)(with Polarizer) |
4.Innolux G150XJE-DM1 Electronics Details
5.Innolux G150XJE-DM1 Interface Detail
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 510/610mA (Typ./Max.) |
Signal Type : | eDP (1 Lane) | Power Consumption | 1.9W (Typ.) |
Interface Features : | Position | - |
| Type | Connector |
|
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSAK24025P30MB | 0.5mm | 30 pins | 1 pcs |
|
6.Innolux G150XJE-DM1 Backlight Details
Backlight Features : | Lamp Shape | - | Lamp Type | No B/L | Life Time | - |
Replacement | - | Amount | - | Position | - |
7.Innolux G150XJE-DM1 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 27 | 1 | 475×390×320 | 14.50 | 0.0593 |
