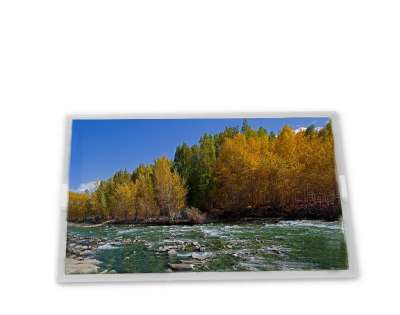

1. Innolux G125HCJ-HN1 Application Details
Basic Detail : | Manufacturer | INNOLUX | Model Name | G125HCJ-HN1 |
Panel Type | a-Si TFT-LCD , CELL |
|
|
Panel Size | 12.5 inch | Designed For | Industrial |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | - |
Vibration Level | - | RoHS | RoHS |
2.Innolux G125HCJ-HN1 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.048×0.144 mm | Pixel Pitch(W×H) | 0.144×0.144 mm [176PPI] |
Physical Size : | Active Viewing | 276.48(W)×155.52(H) mm | Overall Dim. | - |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
Aspect Ratio(W:H) | 16:9 | Shape Style |
|
3.Innolux G125HCJ-HN1 Optical Details
Basic Information : | Luminance | 0 cd/m² (Typ.) | Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive |
Color Performance : | Chromaticity | - | Support Color | 16.7M (6-bit + Hi-FRC) |
4.Innolux G125HCJ-HN1 Electronics Details
5.Innolux G125HCJ-HN1 Interface Details
Signal Electrical : | Input Current | - | Input Voltage | - |
Consumption | - | Signal Interface | eDP |
6.Innolux G125HCJ-HN1 Lightting Details
Lamp Features: | Lamp Shape | - | Lamp Type | No B/L | Position | - |
Exchange | - | Amount | - | Life | - |
