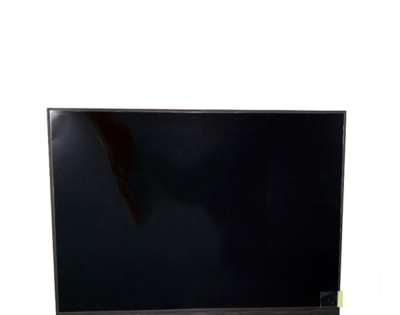

1.Innolux G140HCJ-GN1 Application Details
Basic Detail : | Manufacturer | INNOLUX | Model Name | G140HCJ-GN1 |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Panel Size | 14.0 inch | Designed For | Industrial |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
Vibration Level | - | RoHS | RoHS |
Specific Features : | WLED Backlight，Matte |
2.Innolux G140HCJ-GN1 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.05362×0.16086 mm | Pixel Pitch(W×H) | 0.16086×0.16086 mm [157PPI] |
Physical Size : | Active Viewing | 308.851×173.73 mm (W×H) | Bezel Area (W×H) | - |
Outline Dimension | - | Outline Depth | - |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 | Shape Style | - |
Other Features : | Panel Cover | Weight | Surface |
- | - | Antiglare, Hard coating (3H) |
3.Innolux G140HCJ-GN1 Optical Details
Basic Information : | Luminance | 310cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | - |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive |
Color Performance : | White color Chromaticity | X:0.313; Y:0.329 | Color Amount | 16.7M (8-bit) |
Color Temperature | 6485K |
Luminance Variation : | 1.33/1.54 (Typ./Max.)(13 points) |
4.Innolux G140HCJ-GN1 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
5.Innolux G140HCJ-GN1 Interface Details
Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) |
Consumption | - | Signal Interface | eDP (2 Lanes), eDP1.4 |
6.Innolux G140HCJ-GN1 Lightting Details
Lamp Features: | Shape | - | Lamp Type | WLED | Position | Edge light type |
Exchange | - | Amount | - | Life | 30K(Min.) |
Interface Features : | Position | Type | WLED Driver |
- | Included in signal interface | - |
