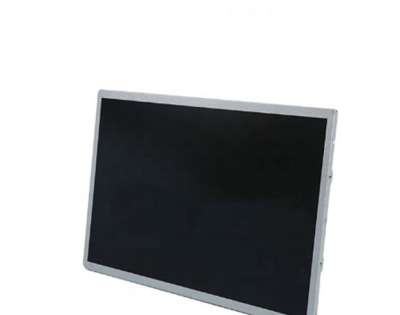

1.Innolux G185BCE-LE1 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G185BCE-LE1 |
Diagonal Size | 18.5" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | 0 ~ 60 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration | 1.5G (14.7 m/s²) |
Specific Features : | WLED Backlight，Life≥50K hours，With LED Driver，Matte |
2.Innolux G185BCE-LE1 Mechanical Details
Pixel Features : | Pixel Format | 1366(RGB)×768, WXGA | Dot Pitch(W×H) | 0.100×0.300 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.300×0.300 mm [84PPI] |
Mechanical Size : | Active Viewing | 409.8(W)×230.4(H) mm | Overall Dim. | 430.37(W)×254.6(H) mm |
Bezel Opening | 413.4(W)×234(H) mm | Outline Depth | 10.5/16.6 (Typ./Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Plate Thickness |
|
Mounting : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | 1.32/1.37Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
3.Innolux G185BCE-LE1 Optical Details
Basic Information : | Brightness | 400 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 1.33 (Max.)(9 points) |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.33 (Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 95% coverage |
Adobe RGB | 74% coverage | DCI-P3 | 76% coverage |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.Innolux G185BCE-LE1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 15.5W (Typ.) |
5.Innolux G185BCE-LE1 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type |
Interface Features : | Position | - | Physical Type | Connector |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
CviLux | CI4205M2HRP-NH | 1.25 mm | 5 pins | 1 pcs |
|
Backlight Driver : | With LED Driver |
Driver Electrical : | Input Voltage | 8.0/12.0/13.2V (Min./Typ./Max.) | Input Current | 0.7/1.0/1.5A (Min./Typ./Max.) |
Consumption | 8.4/12/18W (Min./Typ./Max.) |
6.Innolux G185BCE-LE1 Interface Detail
Signal Systerm : | LVDS (1 ch, 8-bit) | Consumption | 3.5/4.2W (Typ./Max.) |
Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 700/840mA (Typ./Max.) |
Interface Features : | Type | Connector | Position | - |
|
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
STM | MSCK2407P30 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-170A |
7.Innolux G185BCE-LE1 Carton Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Box | 10 | 1 | 525×284×360 | 16.3 | 0.0537 |
