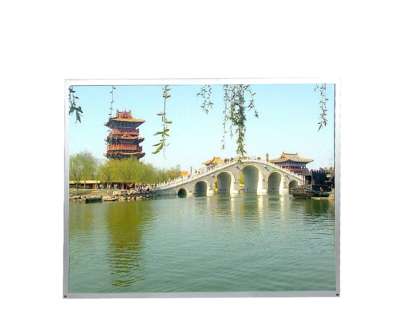

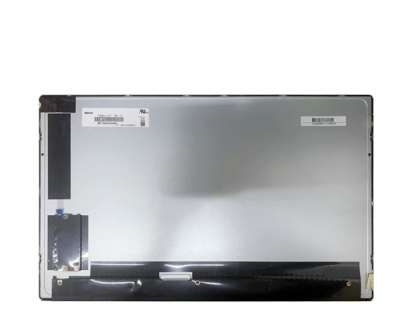

1.Innolux G200HJJ-L01 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G200HJJ-L01 |
Diagonal Size | 19.5" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration | - |
Specific Features : | WLED Backlight，Life≥50K hours，With LED Driver，Reverse I/F,Matte |
2.Innolux G200HJJ-L01 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.0755×0.221 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.2265×0.221 mm [112PPI] |
Mechanical Size : | Active Viewing | 434.88×238.68 mm(W×H) | Bezel Area (W×H) | 438.18×241.98 mm |
Outline Dimension | 459×263 mm(W×H) | Outline Depth | 8.87/12.47 (Typ./Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel |
Mounting : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | 1.66±0.08Kgs | Surface | Antiglare (Haze 25%), Hard coating (3H) |
3.Innolux G200HJJ-L01 Optical Details
Basic Information : | Brightness | 450 cd/m² | Contrast Ratio | 3000:1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | MVA, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 15/5 (Typ.)(Tr/Td), 25 (Typ.)(G to G) (ms) |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 96% coverage |
Adobe RGB | 75% coverage | DCI-P3 | 76% coverage |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.Innolux G200HJJ-L01 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 30.0W (Max.) |
5.Innolux G200HJJ-L01 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type |
WLED Electrical : | Current Input | 90/95mA (Typ./Max.) | Voltage Input | 37.2/39.6V (Typ./Max.) |
Consumption | 20.1/21.4W (Typ./Max.) |
Interface Features : | Position | - | Physical Type | Connector |
WLED Driver | With LED Driver |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
CviLux | CI4205M2HRP-NH | 1.25 mm | 5 pins | 1 pcs |
|
Driver Electrical : | Input Voltage | 19.5±0.5V | Input Current | 1.14/1.26A (Typ./Max.) |
Consumption | 22.3/24.5W (Typ./Max.) |
6.Innolux G200HJJ-L01 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | 4.6/5.5W (Typ./Max.) |
Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 700/800mA (Typ./Max.) |
Interface Features : | Type | Connector | Position | Down middle of panel |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
P-TWO | 187098-30091 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A |
7.Innolux G200HJJ-L01 Carton Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Box | 15 | 1 | 540×395×355 | 26.5 | 0.0757 |
