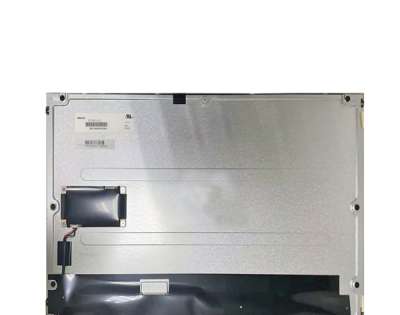

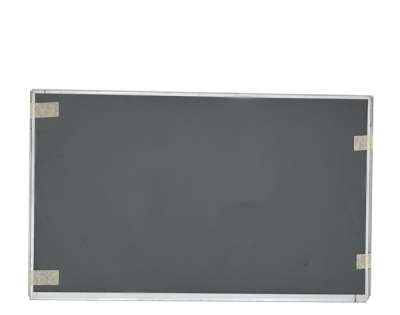

1.Innolux G215HCJ-L01 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G215HCJ-L01 |
Diagonal Size | 21.5" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | 0 ~ 60 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration | 1.5G (14.7 m/s²) |
Specific Features : | WLED Backlight，Life≥50K hours，With LED Driver，Matte |
2.Innolux G215HCJ-L01 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.08265×0.24795 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.24795×0.24795 mm [102PPI] |
Mechanical Size : | Active Viewing | 476.064(W)×267.786(H) mm | Overall Dim. | 497.6(W)×287(H) mm |
Bezel Opening | 479.3(W)×270.9(H) mm | Overall Depth | 9.7/14.0 (Typ./Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel |
Fixation : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | 1.94±0.08Kgs | Surface | Antiglare (Haze 25%), Hard coating (3H) |
3.Innolux G215HCJ-L01 Optical Details
Basic Information : | Brightness | 400 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 8/7 (Typ.)(Tr/Td) |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.33 (Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 94% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 76% coverage |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.Innolux G215HCJ-L01 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 20.85W (Max.) |
5.Innolux G215HCJ-L01 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type |
Interface Features : | Position | - | Physical Type | Connector |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
STM | MS24049HJ | 1.25 mm | 9 pins | 1 pcs |
|
Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 1.2±0.2A |
Consumption | 14.4/16.8W (Typ./Max.) |
6.Innolux G215HCJ-L01 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | 3.5/4.05W (Typ./Max.) |
Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 550/640mA (Typ./Max.) |
Interface Features : | Type | Connector | Position | - |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
P-TWO | 187098-30091 | 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A |
7.Innolux G215HCJ-L01 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 10 | 1 | 567×301×376 | 21.00 | 0.0642 |
