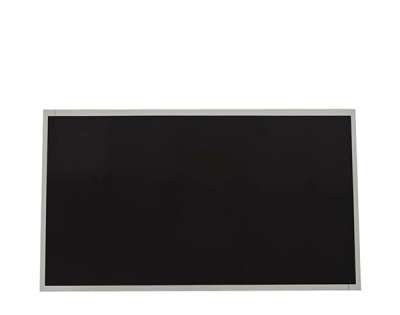

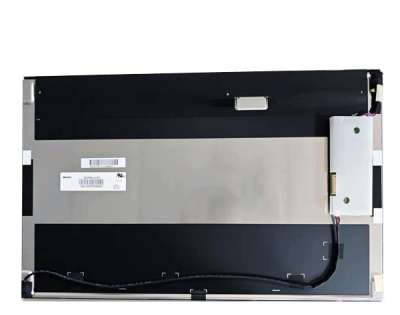

1. Innolux G215HCJ-LH1 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G215HCJ-LH1 |
Diagonal Size | 21.5" | Application | Industrial，Outdoor High Brightness |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
RoHS State | RoHS | Vibration | 1.5G (14.7 m/s²) |
Specific Features : | Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥50K hours，With LED Driver，6/8bit，Matte |
2.Innolux G215HCJ-LH1 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.0827×0.248 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.248×0.248 mm [102PPI] |
Mechanical Size : | Active Viewing | 476.6(W)×268.1(H) mm | Overall Dim. | 495.6(W)×292.2(H) mm |
Bezel Opening | 479.84(W)×271.31(H) mm | Overall Depth | 24.55 (Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Fixation : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | 1.57±0.78Kgs | Surface | Antiglare, Hard coating (2H) |
3.Innolux G215HCJ-LH1 Optical Details
Basic Information : | Brightness | 1400 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) ms |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 93% coverage |
Adobe RGB | 72% coverage | DCI-P3 | 75% coverage |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4.Innolux G215HCJ-LH1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 44W (Typ.) |
5.Innolux G215HCJ-LH1 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type |
Interface Features : | Position | - | Physical Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
|
CviLux | CI0110M1HR0-NH | 2.0 mm | 10 pins | 1 pcs |
|
|
Backlight Driver : | With LED Driver |
Driver Electrical : | Input Voltage | 12.0V (Typ.) | Input Current | 3.3±0.7A |
|
Consumption | 40W (Typ.) |
6.Innolux G215HCJ-LH1 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | 4.0/4.96W (Typ./Max.) |
Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.8/0.96A (Typ./Max.) |
Interface Features : | Type | Connector | Position | - |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
P-TWO | 187098-30091 | 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A |
7.Innolux G215HCJ-LH1 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 8 | 1 | 567×301×376 | N/A | 0.0642 |
