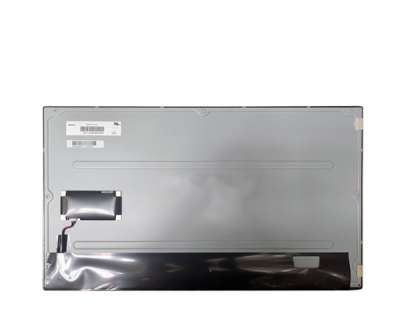

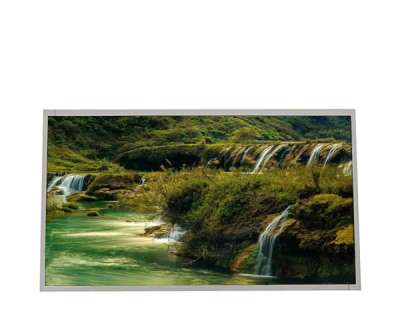

1.Innolux G238HCB-LA1 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G238HCB-LA1 |
Diagonal Size | 23.8" | Application | Industrial,Outdoor High Brightness |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -40 ~ 80 °C |
RoHS State | RoHS | Vibration | 1.5G (14.7 m/s²) |
Specific Features : | DCI-P3,Adobe RGB,sRGB,Wide Temperature,Ultra High Brightness,Mini LED Backlight,Life≥50K hours,With LED Driver |
2.Innolux G238HCB-LA1 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.0915×0.2745 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.2745×0.2745 mm [92PPI] |
Mechanical Size : | Active Viewing | 527.04(W)×296.46(H) mm | Bezel Area(mm) | 530.2(H) × 299.6(V) |
Outline Dim.(mm) | 543(H) × 317.4(V) | Overall Depth | 11.5 (Typ.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Other Features : | Weight | - | Surface | Hard coating (3H) |
3.Innolux G238HCB-LA1 Optical Details
Basic Information : | Brightness | 1400 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.18/1.25 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 106% | sRGB | 100% coverage |
Adobe RGB | 97% coverage | DCI-P3 | 97% coverage |
Rec.2020 | 79% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4.Innolux G238HCB-LA1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 48.4W (Max.) |
5.Innolux G238HCB-LA1 Backlight Details
Back-light Features : | Lamp Type | Mini LED | Amount | - | Life Time | 50K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Direct light type |
Interface Features : | Position | - | Physical Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
CviLux | CI0114M1HR0-LA-NH | 2.0 mm | 14 pins | 1 pcs |
|
Backlight Driver : | With LED Driver |
Driver Electrical : | Voltage Supply | 24.0V | Current Supply | 1.47/1.72A (Typ./Max.) |
Consumption | 35.27/41.15W (Typ./Max.) |
6.Innolux G238HCB-LA1 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | 7.25W (Max.) |
Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.99/1.45A (Typ./Max.) |
Interface Features : | Type | Connector | Position | - |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
FCN | WF13-422-3033 | 1.0mm | 30 pins | 1 pcs |
|
7.Innolux G238HCB-LA1 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 10 | 1 | 620×348×430 | 30.4 | 0.0928 |
