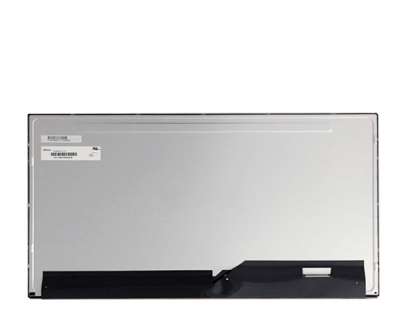

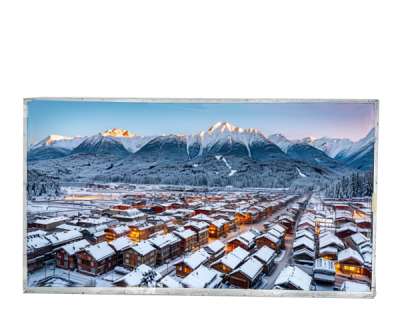

1.Innolux G238HCJ-L01 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G238HCJ-L01 |
Diagonal Size | 23.8" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration | 1.5G (14.7 m/s²) |
Specific Features : | Wide Temperature，Reverse I/F，Matte |
2.Innolux G238HCJ-L01 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.0915×0.2745 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.2745×0.2745 mm [92PPI] |
Mechanical Size : | Active Viewing | 527.04(W)×296.46(H) mm | Overall Dim. | 543(W)×317.4(H) mm |
Bezel Opening | 530.2(W)×299.6(H) mm | Overall Depth | 8.4/11.6 (Typ./Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Fixation : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | 2.71Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
3.Innolux G238HCJ-L01 Optical Details
Basic Information : | Brightness | 350 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 8/7 (Typ.)(Tr/Td) ms |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.33(Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 93% coverage |
Adobe RGB | 72% coverage | DCI-P3 | 76% coverage |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.Innolux G238HCJ-L01 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 25.49W (Max.) |
5.Innolux G238HCJ-L01 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 30K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type |
Lamp Electrical : | Input Voltage | 48.6/54/59.4V (Min./Typ./Max.) | Input Current | 90/95mA (Typ./Max.) |
Consumption | 19.44/21.38W (Max.) |
Interface Features : | Position | Down left corner | Physical Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
FCN | WM13-406-063N | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC |
Backlight Driver : | No |
6.Innolux G238HCJ-L01 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | 4.1W (Max.) |
Signal Electrical : | Voltage Input | 5.0±0.5V | Current Input | 0.55/0.643A (Typ./Max.) |
Interface Features : | Type | Connector | Position | Down right of panel |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
FOXCONN | GS23301-0321R-7H | 1.0mm | 30 pins | 1 pcs |
|
7.Innolux G238HCJ-L01 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 12 | 1 | 620×348×430 | 29.80 | 0.0928 |
