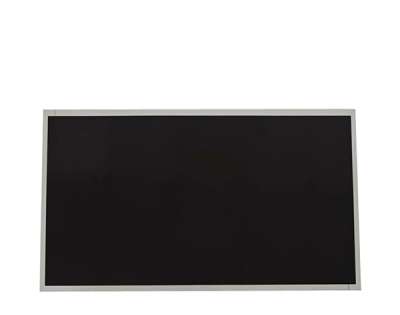

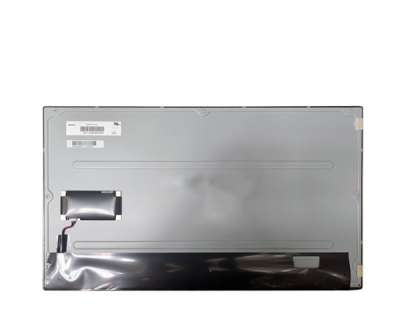

1.Innolux G238HCJ-L02 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G238HCJ-L02 |
Diagonal Size | 23.8" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | 0 ~ 60 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration | 1.5G (14.7 m/s²) |
Specific Features : | Srgb,WLED Backlight,Life≥50K hours,With LED Driver,Reverse I/F,Matte |
2.Innolux G238HCJ-L02 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.0915×0.2745 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.2745×0.2745 mm [92PPI] |
Mechanical Size : | Active Viewing | 527.04(W)×296.46(H) mm | Bezel Area(mm) | 530.2(H) × 299.6(V) |
Outline Dim.(mm) | 540.24(H) × 315.66(V) | Overall Depth | 8.9/13.85 (Typ./Max.) |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Fixation : | Rear mounting holes (7-M3) |
Other Features : | Weight | 2.27Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
3.Innolux G238HCJ-L02 Optical Details
Basic Information : | Brightness | 450 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 8/7 (Typ.)(Tr/Td), 14 (Typ.)(G to G) |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.33(Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 98% coverage |
Adobe RGB | 76% coverage | DCI-P3 | 78% coverage |
Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.Innolux G238HCJ-L02 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 23.49W (Max.) |
5.Innolux G238HCJ-L02 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type |
Interface Features : | Position | - | Physical Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
CviLux | CI4310M1HR0-NH | 1.25 mm | 10 pins | 1 pcs |
|
Backlight Driver : | With LED Driver |
Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 1.3/1.6A (Typ./Max.) |
Consumption | 15.6/19.2W (Typ./Max.) |
6.Innolux G238HCJ-L02 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | 3.516/4.29W (Typ./Max.) |
Signal Electrical : | Voltage Input | 5.0±0.5V | Current Input | 0.703/0.836A (Typ./Max.) |
Interface Features : | Type | Connector | Position | Down right of panel |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
FCN | WF13-422-3033 | 1.0mm | 30 pins | 1 pcs |
|
7.Innolux G238HCJ-L02 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 12 | 1 | 620×348×390 | 28.80 | 0.0841 |
