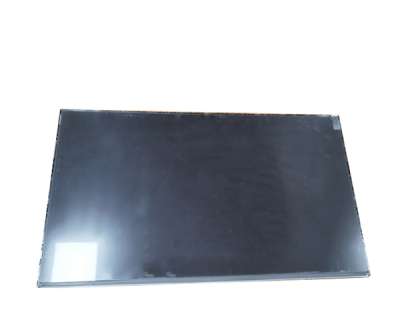

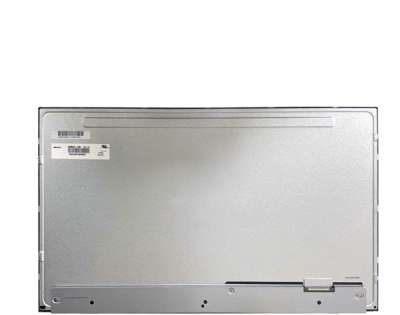

1.Innolux G238HCJ-L0B Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G238HCJ-L0B |
Diagonal Size | 23.8" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration | - |
Specific Features : | sRGB,WLED Backlight,Reverse I/F,Matte |
2.Innolux G238HCJ-L0B Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.0915×0.2745 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.2745×0.2745 mm [92PPI] |
Mechanical Size : | Active Viewing | 527.04(W)×296.46(H) mm | Bezel Area(mm) | - |
Outline Dim.(mm) | 542.84(H) × 317.32(V) | Overall Depth | 8.1/12.05 (Typ.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Mounting : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | 2.24Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
3.Innolux G238HCJ-L0B Optical Details
Basic Information : | Brightness | 350 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 8/7 (Typ.)(Tr/Td) |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | White Variation : | 1.33 (Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 98% coverage |
Adobe RGB | 76% coverage | DCI-P3 | 77% coverage |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.Innolux G238HCJ-L0B Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 20.7W (Max.) |
5.Innolux G238HCJ-L0B Backlight Details
Lamp Features: | Lamp Type | WLED | Amount | - | Life Time | 30K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type |
WLED Electrical : | Voltage Supply | 48.6/54/59.4V (Min./Typ./Max.) | Current Supply | 70/75mA (Typ./Max.) |
|
Power | 15.12/16.6W (Typ./Max.) |
Interface Features : | Position | Down left corner | Physical Type | Connector |
Backlight Driver : | No |
Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
|
FCN | WM13-406-063N | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC |
|
6.Innolux G238HCJ-L0B Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | 3.27/4.29W (Typ./Max.) |
Signal Electrical : | Voltage Input | 5.0±0.5V | Current Input | 0.35/0.45A (Typ./Max.) |
Interface Features : | Type | Connector | Position | Down right of panel |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
FOXCONN | GS23301-0321R-7H | 1.0mm | 30 pins | 1 pcs |
|
7.Innolux G238HCJ-L0B Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 13 | 1 | 620×348×430 | 30.2 | 0.0928 |
