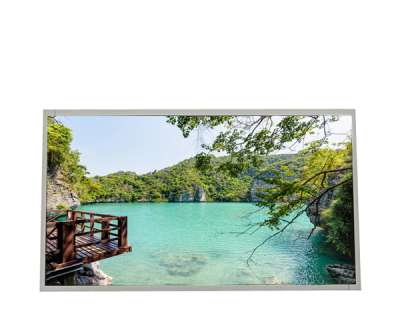

1.Innolux G270HCJ-LN1 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G270HCJ-LN1 |
Diagonal Size | 27.0" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | 0 ~50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration | 1.5G (14.7 m/s²) |
Specific Features : | WLED Backlight,Matte |
2.Innolux G270HCJ-LN1 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.1038×0.3114 (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.3114×0.3114 (H×V) [81PPI] |
Mechanical Size : | Active Viewing | 597.888(H) × 336.312(V) | Bezel Area(mm). | - |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Other Features : | Weight | - | Surface | Antiglare (Haze 25%), Hard coating (3H) |
3.Innolux G270HCJ-LN1 Optical Details
Basic Information : | Brightness | 500 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | - |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | White Variation : | - |
4.Innolux G270HCJ-LN1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5.Innolux G270HCJ-LN1 Backlight Details
Lamp Features: | Lamp Type | WLED | Amount | - | Life Time | 30K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type |
6.Innolux G270HCJ-LN1 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | - |
Signal Electrical : | Voltage Input | 5.0V | Current Input | - |
Interface Features : | Type | Connector | Position | - |
