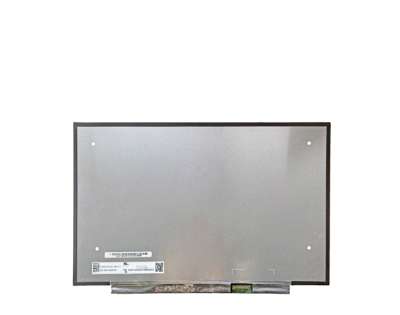

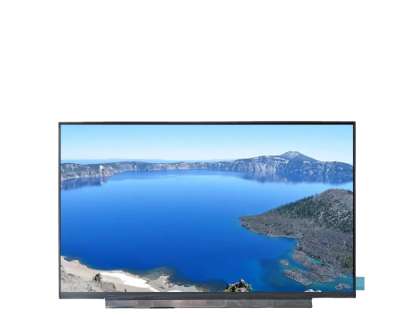

1.Innolux N140HCG-GQ2 Application Details
Basic Detail : | Manufacturer | INNOLUX | Model Name | N140HCG-GQ2 |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Panel Size | 14.0 inch | Designed For | Industrial，Laptop |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
Vibration Level | - | RoHS | RoHS |
Specific Features : | Srgb ，WLED Backlight，With LED Driver，Reverse I/F,Matte |
2.Innolux N140HCG-GQ2 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.05362×0.16086 mm | Pixel Pitch(W×H) | 0.16086×0.16086 mm [157PPI] |
Physical Size : | Active Viewing | 308.851×173.73 mm (W×H) | Bezel Area (W×H) | - |
Outline Dimension | 315.01×185.84 mm(W×H) | Outline Depth | 2.25/2.4 (Typ./Max.) mm |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) |
Fixation : | Without |
Other Features : | Panel Cover | Weight | Surface |
- | 205/220g (Typ./Max.) | Antiglare, Hard coating (3H) |
3.Innolux N140HCG-GQ2 Optical Details
Basic Information : | Luminance | 400cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) (ms) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive |
Color Performance : | White color Chromaticity | X:0.313; Y:0.329 | Color Amount | 16.7M (8-bit) |
Color Temperature | 6485K |
1931 Color Gamut : | NTSC Ratio | 71% | sRGB Coverage | 100% |
Adobe RGB Coverage | 74% | DCI-P3 Coverage | 74% |
Rec.2020 Coverage | 53% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Luminance Variation : | 1.33/1.54 (Typ./Max.)(13 points) |
4.Innolux N140HCG-GQ2 Electronics Details
Refresh Rate : | 60Hz |
Power Consumption : | 3.05W (Max.) |
Reverse Scan : | No |
5.Innolux N140HCG-GQ2 Interface Details
Signal Electrical : | Input Current | 127/152mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
Consumption | 0.5W (Max.) | Signal Interface | eDP (2 Lanes), eDP1.4 |
Interface Features : | Position | Right of Board | Type | Connector |
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
I-PEX | 20455-030E-76 | 1 pcs | 0.5mm | 30 pins | EDP-30P2L-020A |
6.Innolux N140HCG-GQ2 Lightting Details
Lamp Features: | Position | Edge light type | Lamp Type | WLED | Position | Edge light type |
Exchange | - | Amount | 10S6P | Life | 15K(Min.) |
WLED Electrical : | Current Input | 12.4mA (Typ.) | Voltage Input | 26±2V | Consumption | 2.083/2.232W (Typ./Max.) |
Interface Features : | Position | Type | WLED Driver |
- | Included in signal interface | With LED Driver |
Driver Electrical : | Current Input | Voltage Input | Consumption |
168/203/213mA (Min./Typ./Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 2.55W (Max.) |
7.Innolux N140HCG-GQ2 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 20 | 1 | 445×370×275 | N/A | 0.0453 |
