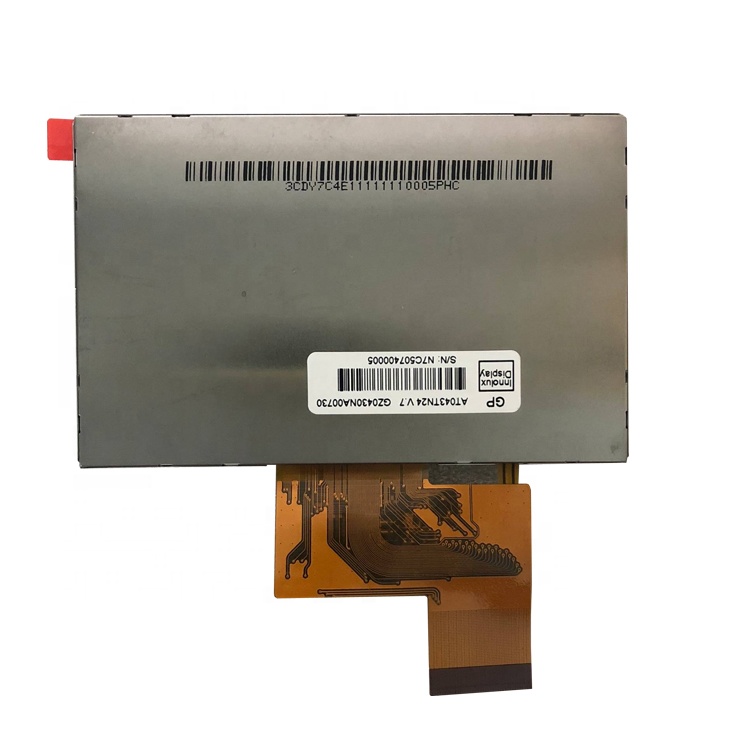

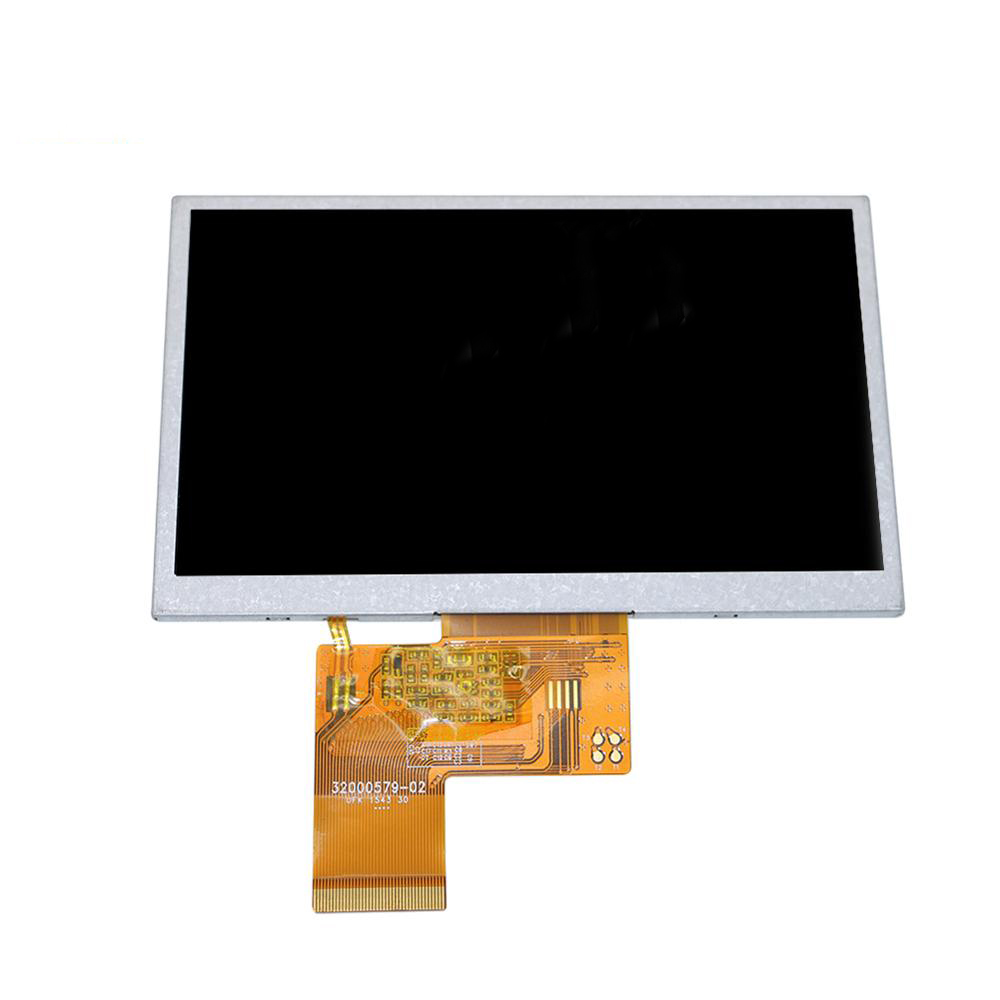

Innolux AT043TN24 V.7 4.3inch LCD Panel
Innolux AT043TN24 V.7 Application Details
| Basic Detail : | Panel Brand
| INNOLUX | Model Name | AT043TN24 V.7 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 4.3” | Designed For | Portable Navigation，MP3 PMP,Automotive Display |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | - |
| Features : | With Touch，WLED Backlight，Matte |
Innolux AT043TN24 V.7 Optical Details
| Basic Information : | Luminance | 500 cd/m²(Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | X:0.310; Y:0.330 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6638K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
Innolux AT043TN24 V.7 Mechanical Details
| Pixel Features : | Number of Pixel | 480(RGB)*272 [WQVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.066*0.198 mm | Pixel Pitch | 0.198*0.198 mm (H*V) [128PPI] |
| Physical Size : | Active Viewing(mm) | 95.04*53.856 mm (H*V) | Bezel Area (mm) | 98.7*57.5 mm (H*V) |
| Outline Dim.(mm) | 105.5*67.2 mm (H*V) | Depth(mm) | 4.05±0.2 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | 4-wire Resistive Touch |
| Other Spec : | Weight | 59.0g (Typ.) | Treatment | Antiglare |
Innolux AT043TN24 V.7 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 614mW (Typ.) |
Innolux AT043TN24 V.7 Interface Details
| Signal Electrical : | Signal Interface | Parallel RGB (1 ch, 8-bit) | Logic Voltage | GND≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 17/25mA (Typ./Max.) |
| Consumption | 56mW (Typ.) |
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| |
| 0.5mm | 40 pins | 1 pcs | DRGB-40P1C8B-080A |
Innolux AT043TN24 V.7 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 8S1P | Position | Edge light type |
| Exchange |
- | Lamp Shape | 1 string | Lamp Life | 20K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 25.2/27.9/31.5V (Min./Typ./Max.) | Current Supply | 18/20/22mA (Min./Typ./Max.) |
| Consumption | 558mW (Typ.) |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface |
| Backlight Driver : | No |
Innolux AT043TN24 V.7 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 80pcs / box | 7.10±0.36 Kgs | 375*280*210 mm |
-
