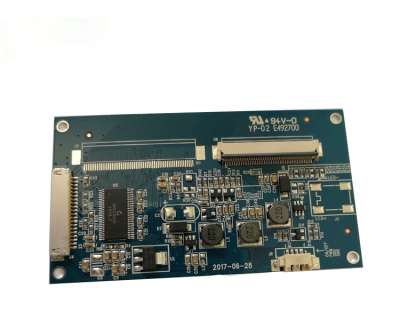

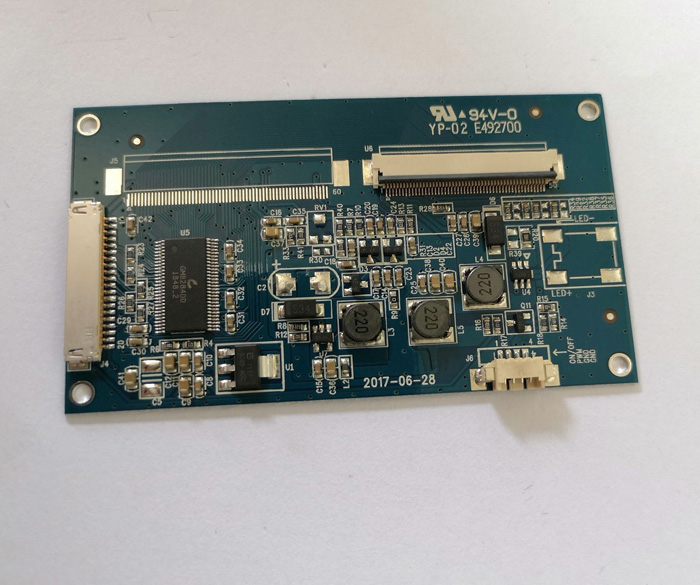

TCON v1.2 LVDS to TTL, including TCON voltage, including backlight driving

Model:TCON v1.2
Brand:LCD driver board
Aximum:1024 * 768
Size:
Maximum resolution supported:
Interface signal: LVDS to TTL
LCDinterface:
Operating Temp.:-40 ~ 70 °C
Production State:In Production

Click For Price

Technical Parameters

LCD screen used for TTL interface and supported by TCON voltage has backlight driving circuit

TM104SDHG30，EJ080NA，CLAA080WK01，AT080TN64，TM080SDH01-41，LSA40AT9001_ V1.1

Project	describe
Product name	TCON V1.2
Chip solution	Mstar
Support maximum resolution	1024*768
Support size	10.4"
Interface signal	LVDS
Input power	+5V power supply
Function	LVDS to TTL, including TCON voltage, including backlight driving circuit, used for TCON screen supporting TTL
LCD interface	TTL
Storage conditions	The temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85%
Working conditions	Temperature - 40 ℃ to 70 ℃; Relative humidity 20% to 80%
Size	83478mm
Applicable occasions	Industrial control display, special occasions display, LCD driver board, LCD control board.

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for TCON v1.2. Please include your application and required quantity so we can confirm the applicable revision.

Request TCON v1.2 Datasheet
