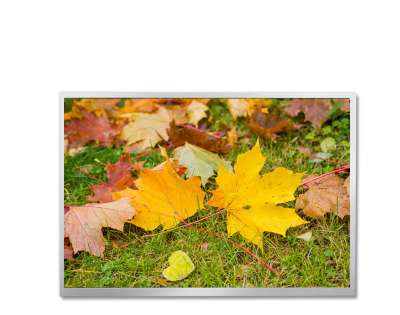

1.TIANMA P1010WXF2ME30 Application Details
Basic Information : | Brand | TIANMA | Model | P1010WXF2ME30 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 10.1 inch |
|
|
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS |
|
|
Typical Features : | WLED Backlight，Matte |
2.TIANMA P1010WXF2ME30 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.0565×0.1695 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1695×0.1695 (H×V) [149PPI] |
Mechanical Size : | Active Area(mm) | 216.96(H) × 135.6(V) | Bezel Area(mm) | 219.96(H) × 138.6(V) |
Outline Dim. (H×V) | 224.8×147.92 mm | Depth(mm) | 3.0/4.8 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
Other Spec : | Weight | TBD | Treatment | Antiglare |
Holes & Brackets : | Without |
3.TIANMA P1010WXF2ME30 Optical Details
Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) |
Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
- | 16.7M (8-bit) | - |
| White Uniformity : | 1.33/1.43 (Typ./Max.)(9 points) |
4. TIANMA P1010WXF2ME30 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
5.TIANMA P1010WXF2ME30 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - |
Consumption | - |
Signal Type : | LVDS (1 ch, 8-bit) |
Interface Features : | Position | - | Type | FPC |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
|
| 0.5 | 40 pins | 1 pcs |
|
6.TIANMA P1010WXF2ME30 Backlight Details
Backlight Features : | Type | WLED | Amount | - | Position | Edge light type |
Replacement | - | Shape | Array | Life Time | 30K(Typ.) Hours |
WLED Electrical : | Input Voltage | Input Current | Power Consumption |
15.0±1.0V | 180mA (Typ.) | 2.7W (Typ.) |
Interface Features : | WLED Driver State | Physical Type | Interface Position |
No | Included in signal interface | - |
