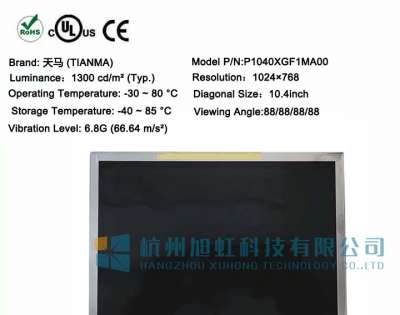

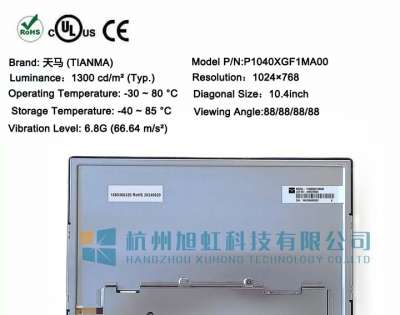

1、TIANMA P1040XGF1MA00 Application Features
Basic Information : | Manufacturer | TIANMA | Panel Model | P1040XGF1MA00 |
Panel Type |
| Alias | TM104TDGP13-00 |
Environment : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -40 ~ 85 °C |
RoHS | RoHS | Vibration Level | 6.8G (66.64 m/s²) |
Used For : | Industrial，Rugged Industry，Outdoor High Brightness |
典型特征 : | Wide Temperature，6.8G Vibration，Ultra High Brightness，WLED Backlight，Life≥100K hours，180°Reverse，6/8 bit，Matte |
2、TIANMA P1040XGF1MA00 Mechanical Features
Panel Size : | 10.4" |
Pixel Features : | Pixel Format | 1024(RGB)×768, XGA | Pixel Configuration | RGB Vertical Stripe |
Pixel Pitch (mm) | 0.2055×0.2055 [123PPI] | Dot Pitch (mm) | 0.0685×0.2055 |
Mechanical Size : | Active Area (mm) | 210.432(H) × 157.824(V) | Bezel Area (mm) | 213.432(H) × 160.82(V) |
Outline Dimension (mm) | 230(H) × 180.2(V) | Outline Depth (mm) | 9.5±0.3 mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3 (H:V) | Shape Style | - |
Mounting : | Side mounting holes (4-M3) on left, right bezel |
Other Detail : | Weight | 430g (Typ.) | Panel Cover | - |
Treatment | Antiglare |
3、TIANMA P1040XGF1MA00 Optical Features
Basic Information : | Luminance (cd/m²) | 1300 cd/m² (Typ.) | Response Time (ms) | 35 (Typ.)(Tr+Td) |
Viewing Angle (L/R/U/D) | 88/88/88/88 (Typ.)(CR≥10) | Best View on | Symmetry |
Display Mode | SFT, Normally Black, Transmissive | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
Dispaly Color : | Color Temperature | 6485K | Display Colors | 262K/16.7M (6-bit / 8-bit) |
White Coordinate | X:0.313; Y:0.329 |
|
|
1931 Color Gamut : | NTSC Ratio | 56% | sRGB Coverage | 76% |
Adobe RGB Coverage | 58% | DCI-P3 Coverage | 58% |
Rec.2020 Coverage | 42% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Performance : | 3D Tech | Sunlight Visibility | Reflectance |
|
- | Sunlight Readable | - |
|
4、TIANMA P1040XGF1MA00 Electronics Features
Reverse Scan : | Yes (180°) |
Vertical Frequency : | 60Hz |
Driver IC : | Built-in RM51150*1 + RM76870*2 |
5、TIANMA P1040XGF1MA00 Backlight Features
Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
WLED | Edge light type | 6S4P | 4 strings | 100K (Typ.) | - |
WLED Electrical : | Voltage Supply | Current Supply | Power |
18.6/20.4V (Typ./Max.) | 120mA (Typ.) | 8.93W (Typ.) |
Interface Features : | Position | Backlight Driver | Type |
- | No | Connector |
Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
JST | SM10B-SHLS-TF(LF)(SN) | 1.0 mm | 10 pins | 1pcs | BLE-10PINS-NNCAACCAAC |
6、TIANMA P1040XGF1MA00 Interface Features
Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
3.3V (Typ.) | 300/450/675mA (Min./Typ./Max.) | 1.485W (Typ.) |
Interface Features : | Position | Signal | Type |
|
- | LVDS (1 ch, 6/8-bit) | Connector |
|
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
JAE | FI-SEB20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010H |

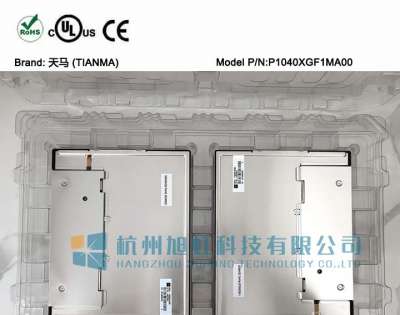

7、TIANMA P1040XGF1MA00 Packing Features
Package Type | Pcs/Package | Package LWH (mm) | Volume (m³) |
| 6 | 520×345×74 | 0.0133 |
