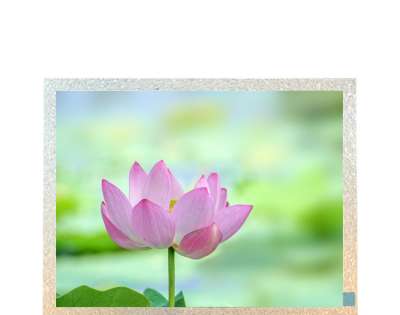

1.TIANMA P1210SVF1ME00 Application Details
Basic Information : | Brand | TIANMA | Model | P1210SVF1ME00 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 12.1 inch | Alias |
|
Environment : | Storage Temp. | -30 ~ 80°C | Operating Temp. | -20 ~ 70 °C |
RoHS | RoHS | Vibration Level |
|
Typical Features : | WLED Backlight，With LED Driver,6/8bit，Matte |
2.TIANMA P1210SVF1ME00 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch | 0.1025×0.3075 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch | 0.3075×0.3075 mm (H×V) [82PPI] |
Mechanical Size : | Active Viewing | 246×184.5 mm (H×V) | Bezel Area | 249.05×188.3 mm (H×V) |
Outline Dim. | 279×209 mm (H×V) | Depth(mm) | 6.27/9.0 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 4:3 (W : H) | Orientation | Landscape type |
Other Spec : | Weight | 492g (Typ.) | Surface | Antiglare |
3.TIANMA P1210SVF1ME00 Optical Details
Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) ms |
Color Performance : | Chromaticity | - | Support Color | 262K/16.7M (6-bit / 8-bit) |
4. TIANMA P1210SVF1ME00 Electronics Details
5.TIANMA P1210SVF1ME00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Input Current | - |
Consumption | - |
Signal Type : | LVDS (1 ch, 6/8-bit) |
Interface Features : | Position | - | Type | Connector |
6.TIANMA P1210SVF1ME00 Backlight Details
Backlight Features : | Type | WLED | Amount | - | Position | Edge light type |
Replacement | - | Shape | - | Life Time | 30K(Typ.) Hours |
Interface Features : | Position | - | Type | - |
Lamp Driver | With LED Driver |
