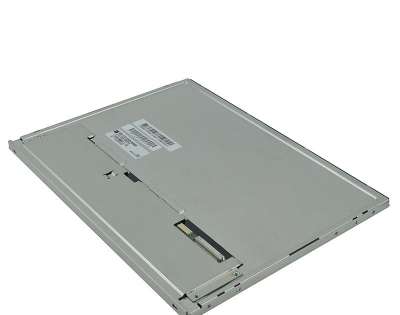

1.TIANMA P1210WXF2MA01 Application Details
Basic Information : | Brand | TIANMA | Model | P1210WXF2MA01 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial，Outdoor High Brightness |
Screen Size | 12.1 inch | Alias | - |
Environment : | Storage Temp. | -40 ~ 90°C | Operating Temp. | -30 ~ 80 °C |
RoHS | RoHS | Vibration Level |
|
Typical Features : | Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥50K hours，Reverse I/F |
2.TIANMA P1210WXF2MA01 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800 [WXGA] | Dot Pitch(W×H) | 0.068×0.204 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.204×0.204 mm [124PPI] |
Mechanical Size : | Active Viewing | 261.12(W)×163.2(H) mm | Overall Dim. | - |
Bezel Opening | - | Depth(mm) | - |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
Other Spec : | Weight | TBD | Surface | Hard coating |
3.TIANMA P1210WXF2MA01 Optical Details
Basic Information : | Luminance(cd/m²) | 1100 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 20 (Typ.)(Tr+Td) |
Color Performance : | Chromaticity |
| Support Color | 16.2M (6-bit + FRC) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4. TIANMA P1210WXF2MA01 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
5.TIANMA P1210WXF2MA01 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Input Current | - |
Consumption | - |
Signal Type : | LVDS (1 ch, 8-bit) |
Interface Features : | Position | Down middle of panel | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
JAE | FI-SEB20P-HFE | 1.25mm | 20 pins | 1 pcs |
|
6.TIANMA P1210WXF2MA01 Backlight Details
Backlight Features : | Type | WLED | Amount | - | Position | Edge light type |
Replacement | - | Shape | Array | Life Time | 50K(Typ.) Hours |
Interface Features : | Position | - | Physical Type | Connector |
Backlight Driver : | No |
