• Technical Parameters

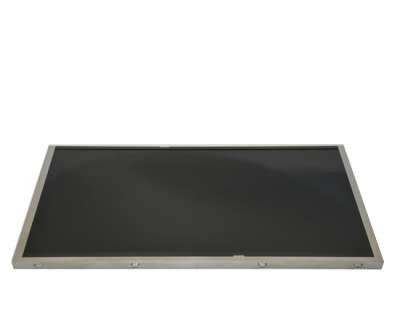

TIANMA P1730FHF1MB00 17.3inch LCD Panel

• 1. TIANMA P1730FHF1MB00 Application Details

  Basic Info :	Panel Brand	TIANMA	Panel Model	P1730FHF1MB00
  	Diagonal Size	17.3"	Application	Industrial
  	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
  Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-20 ~ 80 °C
  	RoHS State	RoHS	Vibration Rating
  Specific Features :	WLED Backlight,With LED Driver，Matte




  2. TIANMA P1730FHF1MB00 Mechanical Details

  Pixel Features :	Pixel Format	1920(RGB)×1080, FHD	Dot Pitch (mm)	0.1995×0.1995  [127PPI]
  	Configuration	RGB Vertical Stripe	Pixel Pitch (mm)	0.0665×0.1995
  Mechanical Size :	Active Viewing (mm)	381.888(H) × 214.812(V)	Outline Dimension (mm)	388.888(H) × 225.812(V)
  	Bezel Area (mm)	-	Outline Depth(mm)	4/9.4 (Typ./Max.)
  Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
  	Aspect Ratio	16:9(H:V)	Shape Style
  Fixation :	Without
  Other Detail :	Mass	575±28.8g	Surface	Antiglare



  3. TIANMA P1730FHF1MB00 Optical Details

  Basic Information :	Brightness	500 cd/m² (Typ.)	Contrast Ratio	1700:1 (Typ.) (Transmissive)
  	Viewing Angle	88/88/88/88(Typ.)(CR≥10)	Optical Mode	SFT, Normally Black, Transmissive
  	Viewing Direction	Symmetry	Response Time	35 (Typ.)(Tr+Td) (ms)
  Color Performance :	Chromaticity	X:0.317; Y:0.351	Color Numbers	16.7M (8-bit)
  	Color Temperature	6150K	White Variation	1.18/1.33 (Typ./Max.)(9 points)
  1931 Color Gamut :	NTSC Ratio	73%	sRGB	92% coverage
  	Adobe RGB	72% coverage	DCI-P3	75% coverage
  	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)




  4. TIANMA P1730FHF1MB00 Electronics Details

  Frame Frequency :	60Hz
  Reverse Scan :	No




  5. TIANMA P1730FHF1MB00 Backlight Details

  Back-light Features:

  Lamp Shape

  12 strings

  Amount

  -

  Life Time

  30K(Min.) (Hours)

  Replacement

  -

  Lamp Type

  WLED

  Position

  Edge light type

  WLED Electrical :

  Voltage Supply

  Current Supply

  Power

  14.5/15/16.5V (Min./Typ./Max.)

  610mA (Typ.)

  9.15W (Typ.)

  Interface Features :

  Position

  -

  Type

  Connector

  Interface Detail :

  Brand

  Model

  Quantity

  Pins

  Pitch

  Pin Configuration

  HRS

  KW30-8S-1H(800)

  1pcs

  8 pins

  1.0 mm

  Backlight Driver :

  With LED Driver

  Driver Electrical :

  Voltage Supply

  12.0±1.2V

  Current Supply

  TBD




  6. TIANMA P1730FHF1MB00 Interface Details

  Signal Systerm :	Input Current				-		Input Voltage		5.0V (Typ.)
  	Consumption				2.0W (Typ.)		Signal Interface		LVDS (2 ch, 8-bit)
  Interface Features :	Position		-			Type				Connector
  Interface Detail :	Brand	Model		Pitch		Pins		Amount			Pin Assignment
  	STM	MSBKT2407P30HB		1.0mm		30pins		1pcs




  7. TIANMA P1730FHF1MB00  Carton Details

  Package Type	Pcs/Package	Box/Package	Package LWH (mm)	G.W (kgs)	Volume (m³)
  Carton	10	1	544×365×312.5	8.94	0.0621
