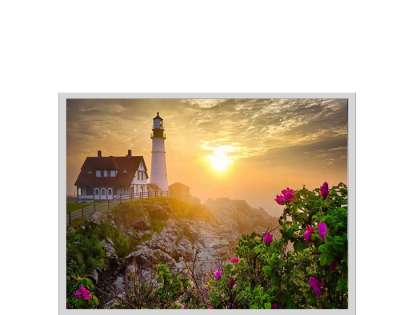

1. TIANMA P0567VQF1ME00 Application Features
Basic Information : | Brand | Model | Type | Model Alias |
TIANMA | P0567VQF1ME00 | a-Si TFT-LCD , LCM | - |
Reliability : | RoHS | Operating Temperature | Storage Temperature | Industrial |
RoHS | -20 ~ 70 °C | -25 ~ 80 °C | - |
Designed For : | Industrial |
Specific Features : | WLED Backlight，Life≥50K hours，U/D,L/R Reverse， Matte |
2. TIANMA P0567VQF1ME00 Mechanical Features
Panel Size : | 5.6 inch |
Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
320(RGB)×240 [QVGA] | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] |
Mechanical Size :
| Active Area (mm) | Overall Dim. | Bezel Opening | Overall Depth |
115.2(W)×86.4(H) | 144(W)×104(H) mm | 117.8(W)×88.8(H) mm | 5.1±0.3 mm |
Outline Features : | Form Style | Flat Rectangle | Orientation | Landscape type |
Flat Rectangle | 4:3 (H:V) | Landscape type |
|
Fixation : | Without |
Other Features : | Panel Cover | Weight | Surface |
- | 122g (Typ.) | Antiglare |
3. TIANMA P0567VQF1ME00 Optical Features
Basic Information : | Brightness | Operating Mode | Contrast Ratio |
500 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
85/85/85/85 (Typ.)(CR≥10) | Symmetry | 35 (Typ.)(Tr+Td) (ms) |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
6485K | 16.7M (8-bit) | X:0.313; Y:0.329 |
1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
63% | 87% | 65% |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
4. TIANMA P0567VQF1ME00 Electronics Features
Power Consumption : | 1.36W (Typ.) |
Frame Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Time Controller (T-CON) : | Embedded T-CON |
5. TIANMA P0567VQF1ME00 Interface Features
Signal Electrical : | Consumption | Voltage Input | Consumption |
280.5mW (Typ.) | 3.3V (Typ.) | 85mW (Typ.) |
Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
Interface Features : | Position | Type | Interface |
- | FPC | Parallel RGB (1 ch, 8-bit) |
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
|
| 1 pcs | 0.5 mm | 50 pins |
|
6. TIANMA P0567VQF1ME00 Backlight Features
Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
WLED | Edge light type | - | - | 50K(Typ.) (Hours) |
|
WLED Electrical : | Current Input | Voltage Input | Consumption |
60mA (Typ./Max.) | 18V (Typ.) | 1.08W (Typ.) |
Interface Features : | Position | Type | WLED Driver |
- | Included in signal interface | No |
7. TIANMA P0567VQF1ME00 Packing Features
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
28 | 520×345×111 | N/A |
