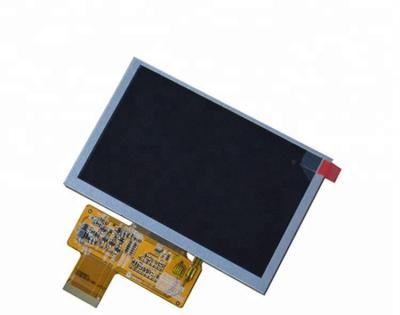

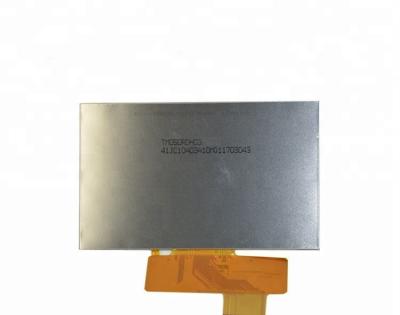

TIANMA TM050RDH03-41 Application Details
| Basic Detail : |
Panel Brand |
TIANMA |
Model Name |
TM050RDH03-41
|
| Panel Type |
a-Si TFT-LCD , LCM |
Another Name |
|
| Panel Size |
5.0” |
Designed For |
Industrial，Portable Navigation，MP3 PMP，MID UMPC |
| Maximum Ratings : |
OP Temperature |
-20 ~ 70 °C |
ST Temperature |
-30 ~ 80 °C |
| RoHS |
RoHS |
Vibration Level |
|
| Features : |
WLED Backlight，Matte |
TIANMA TM050RDH03-41 Optical Details
| Basic Information : |
Luminance |
250 cd/m² (Min.) |
Contrast Ratio |
600:1 (Typ.) (Transmissive) |
| Good View at |
12 o'clock |
Response Speed |
20(Typ.)(Tr+Td) ms |
| Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.310; Wy:0.330 |
Display Colors |
16.7M (8-bit) |
Color Temperature |
6638K |
White Variation |
1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
49% |
sRGB |
69% coverage |
| Adobe RGB |
52% coverage |
DCI-P3 |
51% coverage |
| Rec.2020 |
37% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM050RDH03-41 Mechanical Details
| Pixel Features : |
Number of Pixel |
800(RGB)×480, WVGA |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch (W×H) |
0.045×0.135 (H×V) |
Pixel Pitch (W×H) |
0.135×0.135 (H×V) [188PPI] |
| Physical Size : |
Active Viewing(mm) |
108(H) × 64.8(V) |
Bezel Area (mm) |
111.1(H) × 67.9(V) |
| Outline Dim.(mm) |
120.7(H) × 75.8(V) |
Depth(mm) |
3.10 (Max.) |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
15:9 (H:V) |
Orientation |
Landscape type |
| Other Spec : |
Weight |
57.0g (Typ.) |
Surface |
Antiglare, Hard coating (3H) |
TIANMA TM050RDH03-41 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
No |
| Time Controller (T-CON)： |
Embedded T-CON |
TIANMA TM050RDH03-41 Interface Details
| Signal Systerm : |
Parallel RGB (1 ch, 8-bit) |
Logic Voltage |
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD |
| Signal Electrical : |
Voltage Input |
3.3V (Typ.) |
Current Input |
TBD |
| Interface Features : |
Position |
297mW (Typ.) |
Physical Type |
FPC |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Pin Assignment |
| |
|
0.5mm |
40pins |
1 pcs |
|
TIANMA TM050RDH03-41 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
7S2P |
Position |
Edge light type |
| Exchange |
- |
Lamp Shape |
Array |
Lamp Life |
20K(Typ.) (Hours) |
| Lamp Electrical : |
Input Voltage |
21.7V (Typ.) |
Input Current |
40mA (Typ.) |
| Consumption |
868mW (Typ.) |
| Interface Features : |
Position |
- |
Physical Type |
Included in panel signal interface |
| Backlight Driver : |
No |
TIANMA TM050RDH03-41 Carton Details
| Package Box : |
Amount |
Weight |
Size (L×W×H) |
| 112 pcs / box |
9.85 Kgs |
530×350×250 mm |
