1. TIANMA P0700WSF2MB00 Application Details
Basic Info : | Panel Brand | TIANMA | Panel Model | P0700WSF2MB00 |
Diagonal Size | 7.0" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
RoHS State | RoHS | Vibration Rating | - |
Specific Features : | WLED Backlight，U/D,L/R Reverse，Matte |
2. TIANMA P0700WSF2MB00 Mechanical Details
Pixel Features : | Pixel Format | 1024(RGB)×600, WSVGA | Dot Pitch | 0.050×0.150 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.150×0.150 mm (H×V) [169PPI] |
Mechanical Size : | Display Area | 153.6×90 mm (H×V) | Bezel Area(mm) | 156.4×92.8 mm (H×V) |

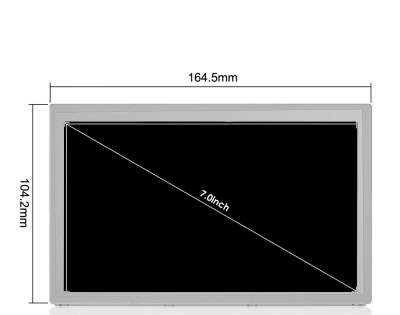

Outline Dim. | 164.5×104.2 mm (H×V) | Outline Depth | 3.5±0.3 mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 17:10 (H:V) | Shape Style |
|
Holes & Brackets : | Without |
Other Features : | Weight | 120±6g | Surface | Antiglare |
3. TIANMA P0700WSF2MB00 Optical Details
Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 30(Typ.)(Tr+Td) (ms) |
Color Performance : | Chromaticity | Wx:0.303; Wy:0.334 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6980K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 53% | sRGB Coverage | 71% |
Adobe RGB Coverage | 55% | DCI-P3 Coverage | 55% |
Rec.2020 Coverage | 39% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA P0700WSF2MB00 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (180°) |
5. TIANMA P0700WSF2MB00 Backlight Details
Back-light Features: | Lamp Shape | 3strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
Replacement | - | Amount | 9S3P | Position | Edge light type |
WLED Electrical : | Voltage Supply | 24.3/27/28.8V (Min./Typ./Max.) | Current Supply | 60mA (Typ.) |
Power | 1.62W (Typ.) |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | No |
6. TIANMA P0700WSF2MB00 Interface Details
Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - |
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - |
Consumption | 323.4mW (Typ.) |
Interface Features : | Type | FPC | Position | - |
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Amount |
|
| 0.5 mm | 40 pins | 1 pcs |
|
7. TIANMA P0700WSF2MB00 Carton Details
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
| 52 | 398×290×315 | 10.70 |
