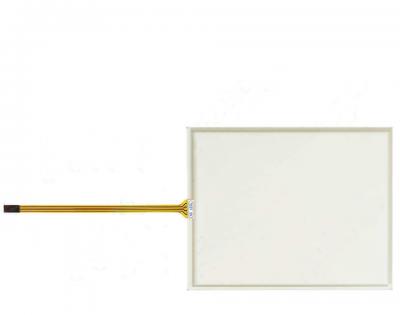

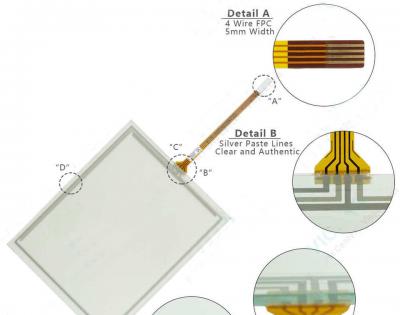

Amt9532 5.7"4-wire resistive touch screen,Suitable for 5.7-inch Industrial LCD

Model:amt9532
Brand:AMT
Aximum:4wire resistive touch screen
Size:5.7 "
Maximum resolution supported:132.5 * 104.7mm
Interface signal:usb
LCDinterface:116.17 * 87.37mm
Operating Temp.: - 20 ℃ ~ 70 ℃
Production State:In Production

Click For Price

Technical Parameters

Amt9532 5.7 "4-wire resistive touch screen
Manufacturer brand	AMT Taiwan
Model Name	AMT9532
Panel Size	5.7”
Overall Depth	1.40mm
Surface	3H
Transmittance	80%
Movement strength	250g
Overall Dim.	132.5104.7（HV）mm
Active Viewing	116.1787.37（HV）mm
OP Temperature	-10 ~ 60 °C
ST Temperature	-40 ~ 80 °C
Click life	100万次（Single point）
Transmittance	81±3%
Haze degree	9.5±4%
working voltage	5V-12V
Environmental testing	ST Temperature：-40℃～80℃ OP Temperature：-20℃～70℃
transmission speed	19200baud
Impedance characteristics	300-600Ω
Linear error	<1.5%
New testing method	High temperature test: test temperature 80 ℃, store 288 hours, take out and store 24 hours at room temperature; Low temperature test: test temperature - 40 ℃, store 288 hours, take out and store 24 hours at room temperature; High temperature and humidity test: test temperature 60 ℃, humidity 90rh, storage 288 hours, take out at room temperature for 24 hours; Cold and hot shock test: the test temperature was - 40 ℃ and 80 ℃, and the storage time was 30 minutes each, 10 cycles, and then stored at room temperature for 24 hours; Durability test: r8mm / 250g force / 2 times per second single touch touch panel, more than 10 million times; Writing test: R 0.8 mm / 250 g force, draw back 100000 times in a straight line of one inch
operating system	Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac
Notes	Suitable for 5.7-inch Industrial LCD screen, such as Youda 5.7-inch g057vge-t01, etc
Defects liability period	1 year

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for amt9532. Please include your application and required quantity so we can confirm the applicable revision.

Request amt9532 Datasheet
