XH80223A-GDA-A2

  • XH80223A-GDA-A2
  • XH80223A-GDA-A2
  • Model:XH80223A-GDA-A2
  • Brand:LCD driver board
  • Aximum:4:3
  • Size:8.0 inch
  • Maximum resolution supported:183.00 * 141.00mm
  • Interface signal:USB
  • LCDinterface:163.05 * 122.54mm
  • Operating Temp.:
  • Production State:
  • Click For Price
  • Technical Parameters
  • Model No.XH80223A-GDA-A2
    Size8.0inch
    Aspect Ratio4:3
    Touch typeCapacitive touch screen
     Touch point10
    Thickness1.85 mm

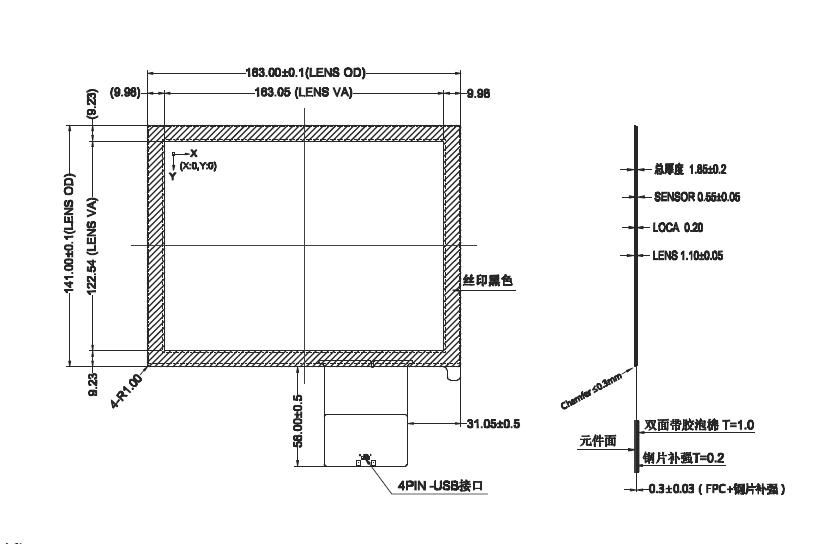

    Outline Dimensional183.0mm*141.0mm
     View Area163.1mm*122.5mm
    Panel structureG+G
    Temperature range-20℃～+70℃ (30min)
    Humidity range-30℃～+80℃
    Working voltageDC5.0V
    Linear equation≤2%
    Optical Characteristics≥87%
    Surface Hardness≥ 6H
    interfaceUSB

    The above parameters are for reference only, and the actual value should be based on the product specification.




Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for XH80223A-GDA-A2. Please include your application and required quantity so we can confirm the applicable revision.

Request XH80223A-GDA-A2 Datasheet
