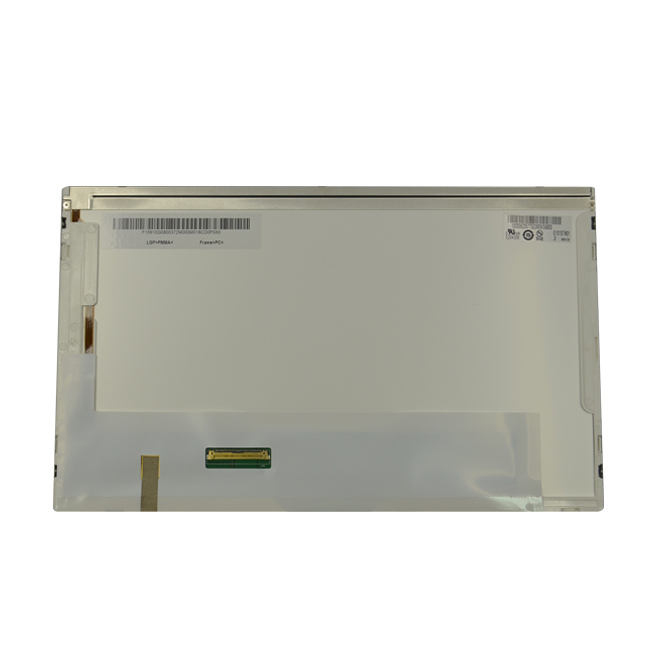

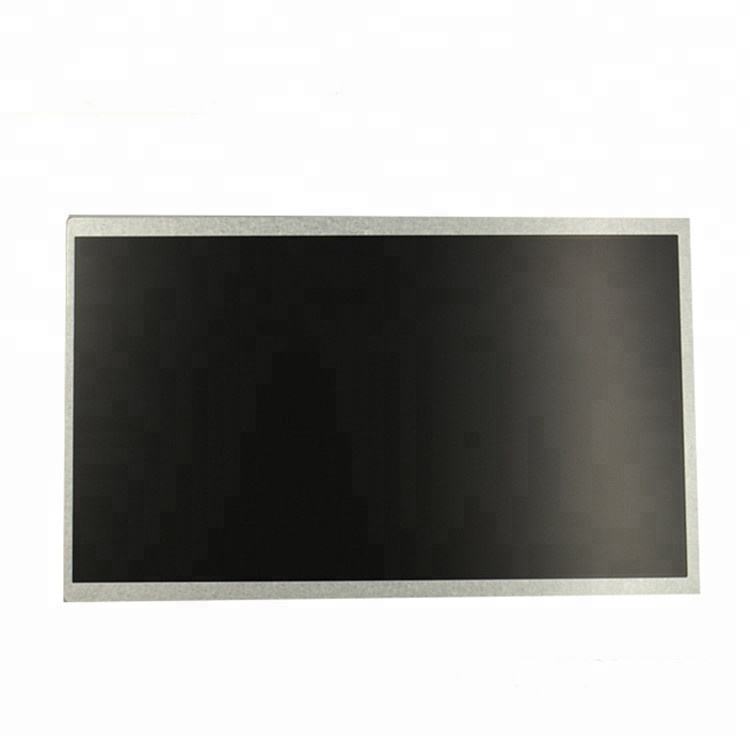

AUO G101STT01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101STT01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 10.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -10~ 60 °C | ST Temperature | -30 ~70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | With Touch，WLED Backlight，Life>=50K hours,With LED Driver，Reverse I/F |
AUO G101STT01.0 Optical Details
| Basic Information : | Luminance | 385 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 7/9 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Variation | 1.25 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101STT01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*600 [WSVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0725*0.2088 mm | Pixel Pitch(W*H) | 0.2175*0.2088 mm [117PPI] |
| Physical Size : | Active Viewing(mm) | 222.72(W)*125.28(H) mm | Outline Dim.(mm) | 249.56(W)*168.2(H) mm |
| Bezel Opening(mm) | 223.72(W)*126.28(H) mm | Overall Depth(mm) | 8.8±0.5 mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type |
| Touchscreen : | TP Controller | With touch controller
| TP Interface | USB |
Touch Points
| 10 points | TP Technology | PCAP, Air Bonding |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Detail : | Weight | 450g (Max.) | Surface | Hard coating (7H) |
AUO G101STT01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G101STT01.0 Interface Detail
| Signal Electrical : | Input Current | 130/150mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.43/0.5W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6-bit) |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| STM | MSB24013P20HA | 1.0mm | 20pins | 1 pcs | |
AUO G101STT01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | 3 strings | Lamp Life | 50K(Min.) (Hours) |
| Lamp Electrical : | Voltage Input | 24.61/27.69V (Typ./Max.) | Current Input | 38mA (Typ.) |
| Consumption | 0.935/1.052W (Typ./Max.) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | 720/900mA (Typ./Max.) | Input Voltage | 5.0±0.5V |
| Consumption | 3.6/4.5W (Typ./Max.) |
AUO G101STT01.0 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 24pcs / box | 12.0Kgs
| 520*340*250 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G101STT01.0. Please include your application and required quantity so we can confirm the applicable revision.
