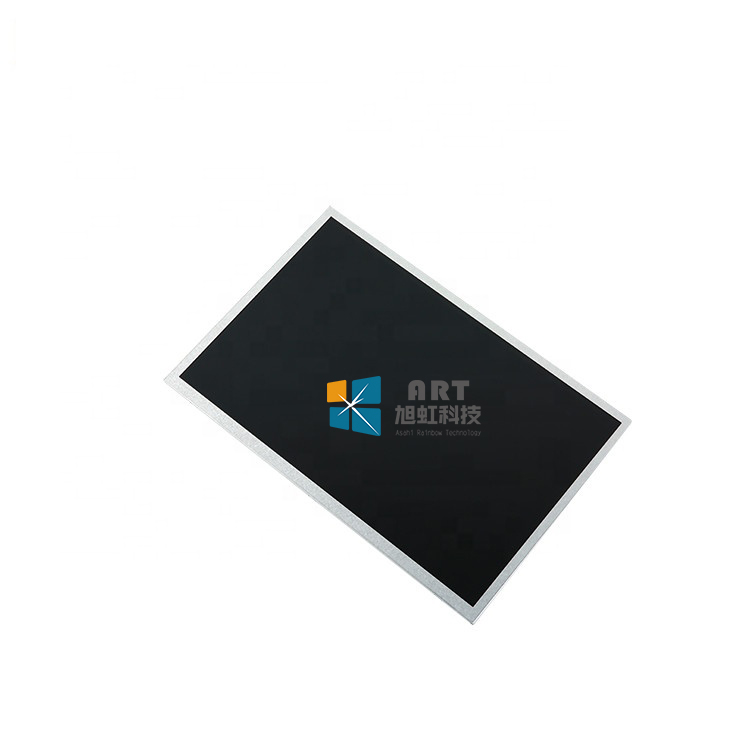

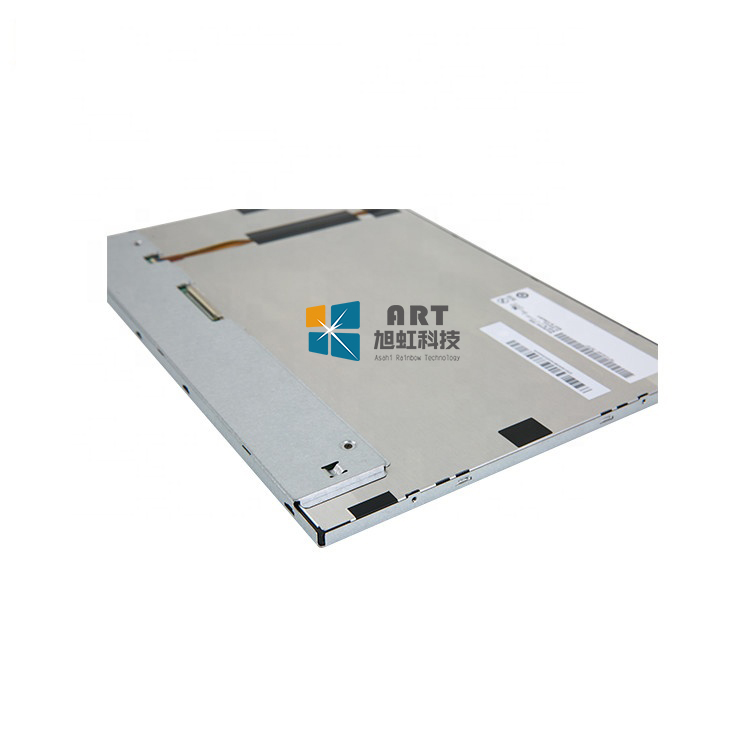

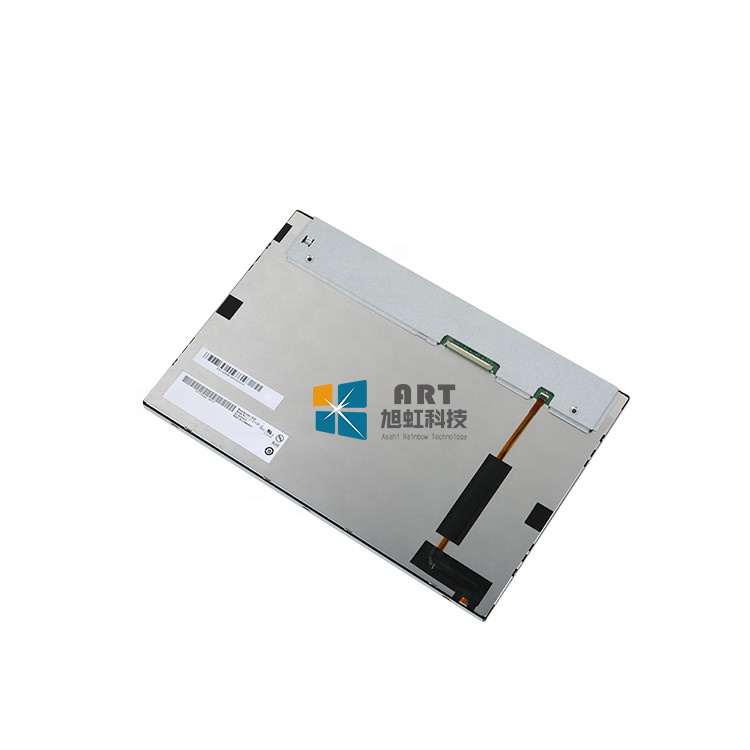

AUO G121STN02.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G121STN02.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 12.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -30 ~ 85°C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Temperature，WLED Backlight，Life>=50k hours, With LED Driver, Upside I/F,180°Reverse，Matte,6/8 bit |
AUO G121STN02.0 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 25/10 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 72% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 55% coverage |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G121STN02.0 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600 [SVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.1025*0.3075 mm | Pixel Pitch(W*H) | 0.3075*0.3075 mm [82PPI] |
| Physical Size : | Active Viewing(mm) | 246(W)*184.5(H) mm | Outline Dim.(mm) | 260.5(W)*203(H) mm |
| Bezel Area(mm) | 249(W)*187.5(H) mm | Depth(mm) | 6.1/9.0 (Typ./Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Spec : | Weight | 600g (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G121STN02.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | 4.62W (Typ.) |
AUO G121STN02.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 200/240mA (Typ./Max.) |
| Consumption | 660/792mW (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB240420HE | 1.25 mm | 20 pins | 1 pcs | |
AUO G121STN02.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | No | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3808K-F05N-12R | 1 pcs | 1.25 mm | 5 pins | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12±1.2V | Current Supply | 330/350mA (Typ./Max.) |
| Consumption | 3.96/4.20W (Typ./Max.) |
AUO G121STN02.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 20 pcs / box | 15.5 Kgs | 570*320*420 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G121STN02.0. Please include your application and required quantity so we can confirm the applicable revision.
