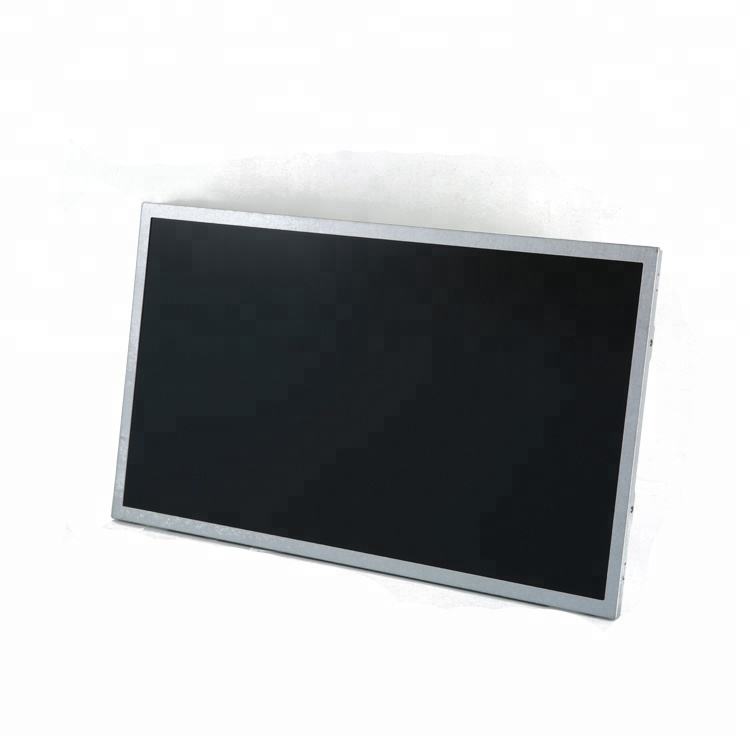

AUO G156HAN02.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G156HAN02.0
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 15.6inch | Designed For | Idustrial，Medical Imaging |
| Maximum Ratings : | OP Temperature | -20~ 70°C | ST Temperature | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | SRGB ,WLED Backlight，Life>=50K hours, With LED Driver,Reverse I/F，Matte |
AUO G156HAN02.0 Optical Details
| Basic Information : | Luminance | 500cd/m²
(Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 98% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 78% coverage |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G156HAN02.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.05975*0.17925 mm | Pixel Pitch(W×H) | 0.17925*0.17925 mm [141PPI] |
| Physical Size : | Active Viewing(mm) | 344.16(W)*193.59(H) mm | Outline Dim.(mm) | 363.8*215.9 mm (H*V) |
| Bezel Area(mm) | 347.06*196.49 mm (H*V) | Depth(mm) | 8.8±0.5 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 600/660g (Typ./Max.) (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G156HAN02.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 9.09W (Typ.) |
AUO G156HAN02.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 240/290mA (Typ./Max.) |
| Consumption | 0.79/0.98W (Typ./Max.) | Signal Interface | eDP (2 Lanes) |

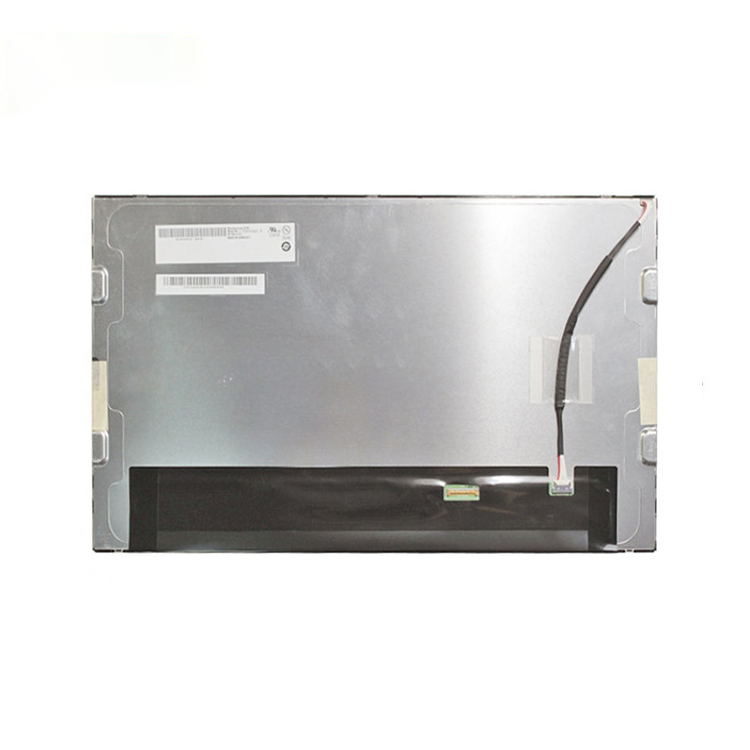

| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| I-PEX | 20455-030E-176R | 0.5mm | 30 pins | 1pcs | EDP-30P2L-020A |
AUO G156HAN02.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) Hours |
| Interface Features : | Position | - | Physical Type |
Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.69A (Typ.) |
| Consumption | 8.3/10.4W (Typ./Max.) |
AUO G156HAN02.0 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 16pcs / box | 13.2Kgs | 450*375*319 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G156HAN02.0. Please include your application and required quantity so we can confirm the applicable revision.
