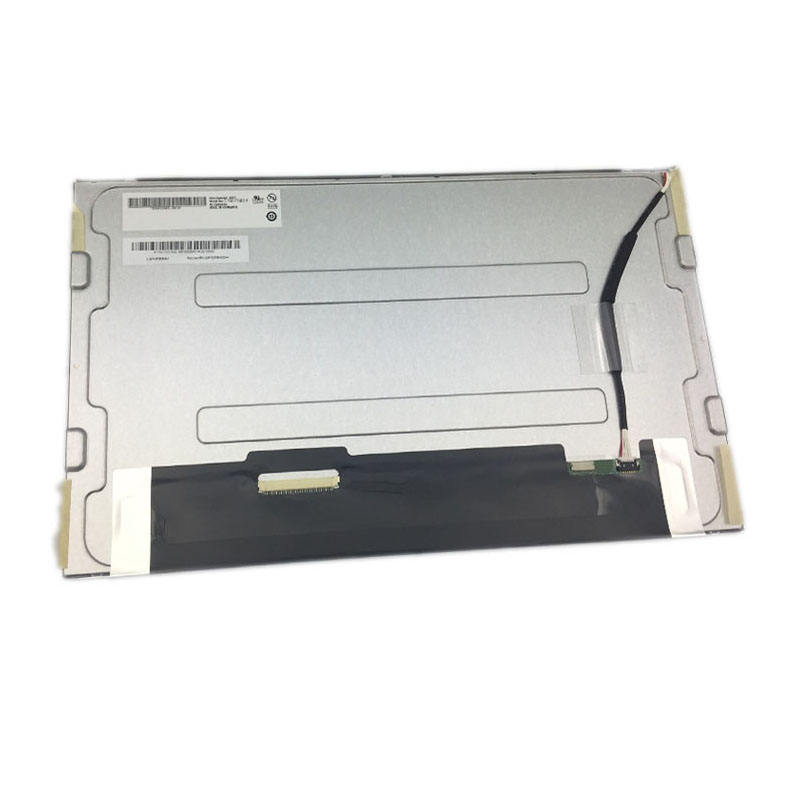

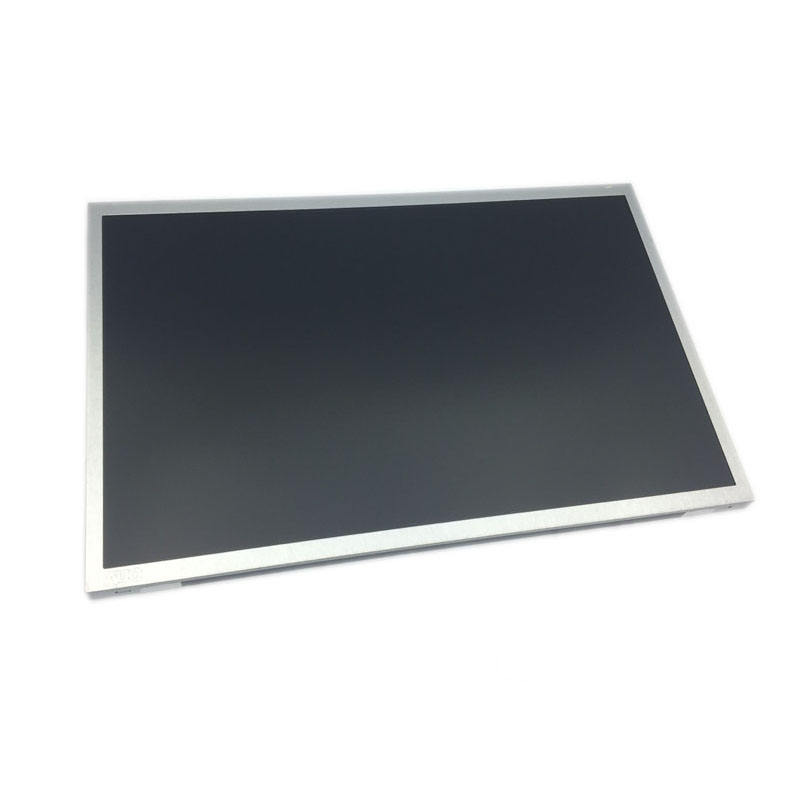

AUO G156XTN01.0 Application Details
| Basic Information : | Brand | AUO | Model | G156XTN01.0 |
| Type | LCM a-Si TFT-LCD | Used For | Industrial |
| Screen Size | 15.6" | | |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) |
| Typical Features : | Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,Matte |
AUO G156XTN01.0 Mechanical Details
| Pixel Features : | Resolution | 1366(RGB)*768, WXGA | Dot Pitch(mm) | 0.084*0.252 (H*V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.252*0.252 (H*V) [100PPI] |
| Mechanical Size : | Active Area(mm) | 344.232(H) *193.536(V) | Bezel Area(mm) | 350.4(H) *196.94(V) |
| Outline Dim.(mm) | 363.8(H) *215.9(V) | Depth(mm) | 9.1±0.5 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel
|
| Other Spec : | Weight | 860g (Typ.) | Treatment | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
AUO G156XTN01.0 Optical Details
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/50/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | 10 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Temperature
| 6485K | White Uniformity | 1.33/1.43 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 82% coverage |
| Adobe RGB | 65% coverage | DCI-P3 | 65% coverage |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G156XTN01.0 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 5.43W (Typ.) |
AUO G156XTN01.0 Interface Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
| Replacement | - | Amount | - | Position | Edge light type |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 0.40/0.48A (Typ./Max.) |
| Consumption | 4.77/5.72W (Typ./Max.) |
AUO G156XTN01.0 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.20/0.24A (Typ./Max.) |
| Consumption | 0.66/0.79W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | Rear |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-XB30SSL-HF15 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-170A |
AUO G156XTN01.0 Carton Details
Package Carton :
| Amount | Net Weight | Carton Size (L*W*H) |
| 16 pcs / box | 15.3 Kgs | 450*375*319 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G156XTN01.0. Please include your application and required quantity so we can confirm the applicable revision.
