G150XTN06.5 AUO 15" XGA LCD Panel | 300 nits, LVDS

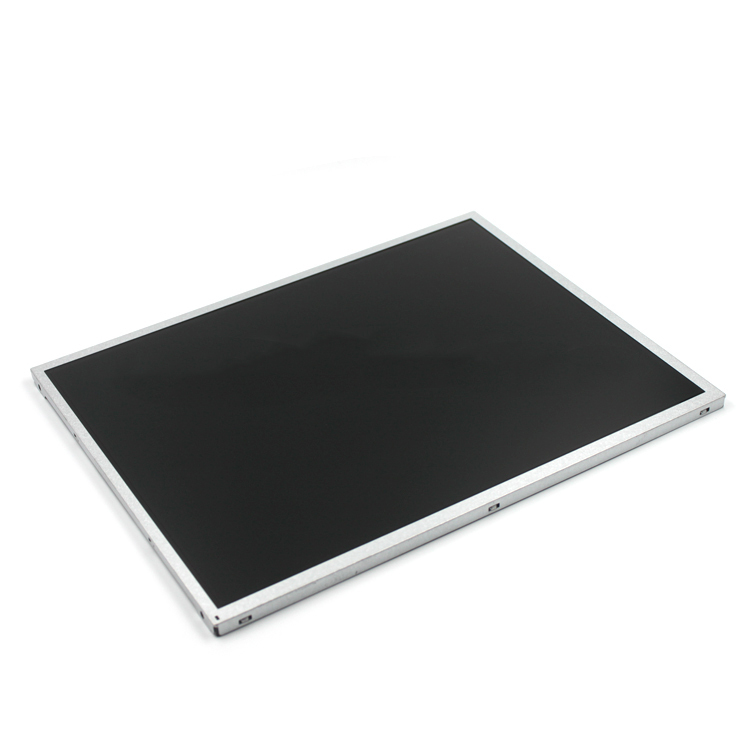

AUO G150XTN06.5 is a 15.0-inch XGA industrial TFT-LCD module with a native resolution of 1024 × 768, 300 cd/m² typical luminance, a 20-pin single-channel LVDS interface and a -20°C to 70°C operating range. It uses a 4:3 TN normally-white panel with an anti-glare surface and an integrated WLED driver.

G150XTN06.5 Key Specifications

Mechanical Dimensions

Mechanical fit must be checked against the controlled drawing. Confirm the outline, active area, thickness, mounting-hole locations, connector position and cable direction before approving this panel for an existing enclosure.

LVDS Interface and Power Requirements

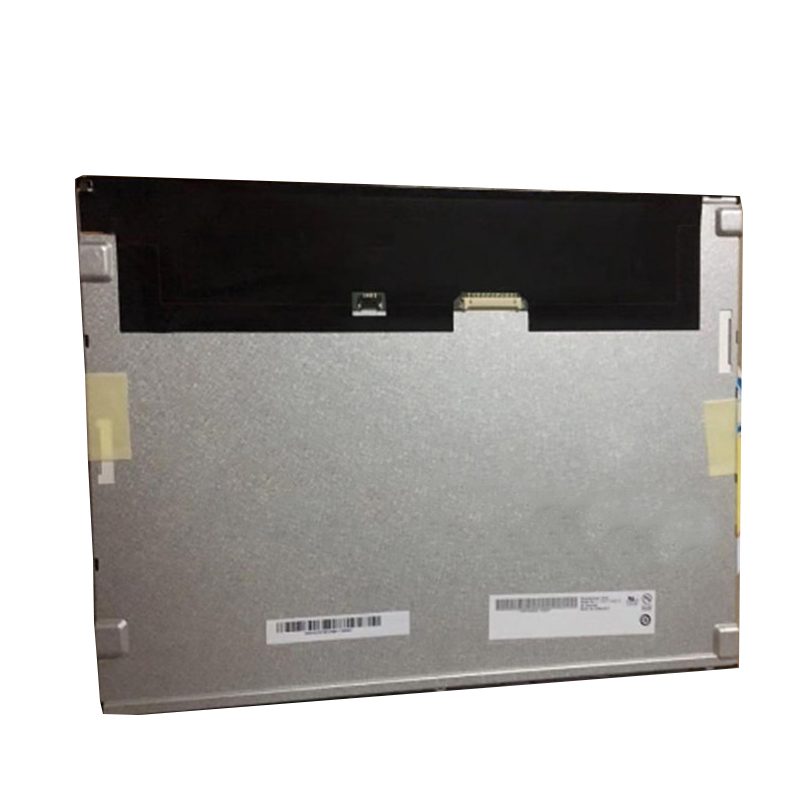

G150XTN06.5 uses a single-channel LVDS interface supporting 6-bit or 8-bit operation. The module connector is specified as an STM MSB240420E or compatible 20-pin connector with 1.25 mm pitch. The signal connector is located at the upper middle of the rear side of the panel.

Do not qualify a replacement from the words “LVDS” or “20-pin” alone. Compare pin assignment, mapping, channel count, color depth, voltage, timing, power sequence, backlight control and mating connector before applying power.

Optical and Backlight Notes

The panel provides 300 cd/m² typical luminance and an 800:1 typical contrast ratio. Its typical viewing-angle specification is 80° left, 80° right, 70° up and 80° down at CR ≥ 10. These values describe the bare module under the stated test conditions; final readability also depends on ambient light, cover glass, touch panel, bonding, enclosure and system settings.

The preliminary specification states an estimated minimum LED lifetime of 50,000 hours and a typical value of 70,000 hours at 25°C. Lifetime is measured until brightness decreases to 50% of its initial value. It is an operating estimate under specified conditions, not a warranty period.

Suitable Application Evaluation

G150XTN06.5 may be evaluated for legacy industrial equipment requiring a 15-inch, 4:3 XGA panel, including industrial HMIs, machine controls, test instruments and monitoring terminals. Suitability is not established by the model description alone. The customer should validate the exact suffix in the final controller, cable, enclosure, backlight-control and thermal system.

Why buyers consider this model

• Native 1024 × 768 XGA resolution in a 4:3 industrial format.
• Single-channel LVDS interface with 6/8-bit support.
• -20°C to 70°C specified operating range.
• Anti-glare surface and integrated WLED driver.
• Published mechanical, electrical and optical data for engineering comparison.

Compatibility and Replacement Checklist

1. Confirm the complete model and suffix on the installed-panel label.
2. Compare the latest controlled datasheets and mechanical drawings.
3. Verify outline, depth, active area, mounting points and connector position.
4. Verify LVDS channel count, bit depth, mapping, timing and pin assignment.
5. Verify panel voltage, backlight input, enable/dimming control and power sequence.
6. Compare luminance, viewing angle, surface treatment and temperature limits.
7. Test an identified sample in the final equipment before production approval.

No alternative model should be described as a drop-in replacement until every required mechanical, electrical, optical, environmental and firmware condition has been checked and the sample has passed system validation.

Packaging Reference

Packaging information is a reference from the preliminary document and should be reconfirmed for the actual order quantity, shipping method and available stock.

G150XTN06.5 Frequently Asked Questions

What is the native resolution of AUO G150XTN06.5?

The native resolution is 1024 × 768 pixels (XGA) with a 4:3 aspect ratio. It is not a 1920 × 1080 Full HD panel.

What interface does G150XTN06.5 use?

It uses a single-channel LVDS interface with 6-bit or 8-bit support. The specified signal connector is a 20-pin STM MSB240420E or compatible connector with 1.25 mm pitch. Always verify the complete pin assignment and LVDS mapping.

Is G150XTN06.5 sunlight readable?

The specified luminance is 300 cd/m² typical. This specification alone does not qualify the module as sunlight readable. Outdoor readability must be evaluated in the final optical stack and expected ambient-light conditions.

What is the operating temperature range?

The specified operating-temperature range is -20°C to 70°C. The storage-temperature range is also -20°C to 70°C. System-level thermal validation is still required.

Is G150XTN06.5 still in production?

This website lists G150XTN06.5 as discontinued. Stock, date code, condition and future availability must be confirmed when requesting a quotation. Do not assume that an offered replacement is compatible without engineering review.

Can another 15-inch 1024 × 768 LVDS panel replace it?

Not automatically. A candidate must match the mechanical outline, mounting, connector location, pin assignment, LVDS mapping, voltage, timing, power sequence, backlight, optics and temperature requirements. Validate a sample in the final equipment.

What is the specified LED backlight lifetime?

The preliminary specification gives 50,000 hours minimum as estimated data and 70,000 hours typical at 25°C, measured until brightness falls to 50% of its initial value. This is not a warranty period.

Which datasheet revision should be used?

The source reviewed for this page is the AUO G150XTN06.5 Preliminary Specifications, Rev. 0.0, dated December 11, 2015. Because it is a preliminary document and the model is listed as discontinued, request the applicable controlled document and confirm the panel label before purchase or replacement approval.

Technical source: AUO G150XTN06.5 Preliminary Specifications, Rev. 0.0, dated December 11, 2015. Specifications are subject to change. Confirm the applicable document revision, product condition and commercial terms before ordering.
