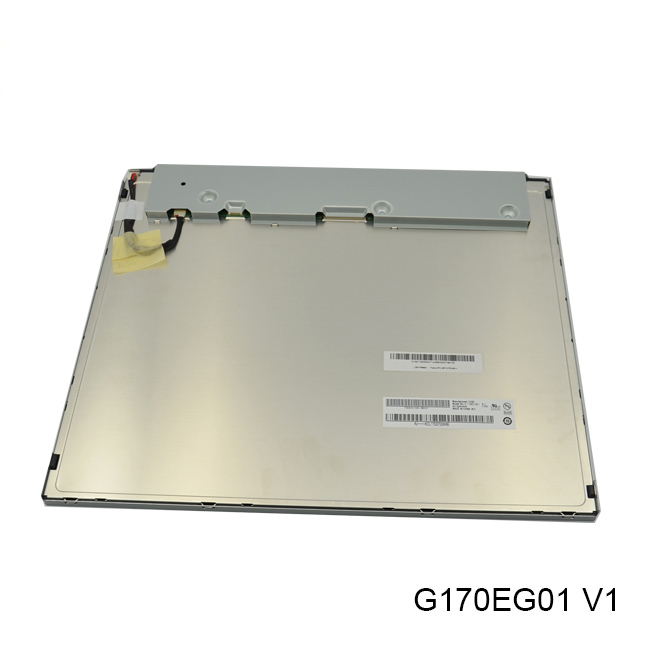

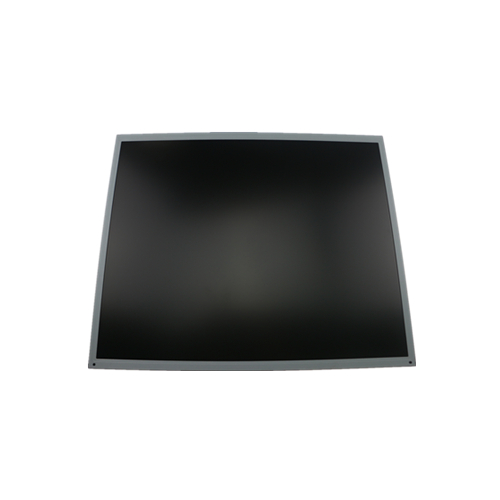

AUO G170EG01 V104 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G170EG01 V104 |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Panel Size | 17.0 inch | Designed For | Industrial |
Maximum Ratings :
| OP Temperature
| -30 ~ 85 ℃ | ST Temperature | -30 ~ 85℃ |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
Features :
| Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,Matte |
AUO G170EG01 V104 Optical Details
| Basic Detail : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 20/10 (Typ.)(Tr/Td) ms |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 93% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 74% coverage |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G170EG01 V104 Mechanical Details
Pixel Features :
| Number of Pixel | 1280(RGB)*1024, SXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.088*0.264 mm | Pixel Pitch(W×H) | 0.264*0.264 mm [96PPI] |
| Physical Size : | Active Viewing | 337.92(W)*270.336(H) mm | Overall Dim. | 358.5(W)*296.5(H) mm |
| Bezel Opening | 341.6(W)*274.0(H) mm | Overall Depth | 12.95 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 5:4 | Shape Style | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Mass | 1.35Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G170EG01 V104 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 16W (Typ.) |
AUO G170EG01 V104 Interface Detail
| Signal Electrical : | Input Current | 1.4/1.68A (Typ./Max.) | Input Voltage | 5.0V (Typ.) |
| Consumption | Consumption | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | Upper middle of panel | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
| STM | MSCKT2407P30B | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-190A |
AUO G170EG01 V104 Lightting Details
| Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type (Top side) |
| Exchange | No | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | Upper left corner | | Type | Connector | |
| Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
| STM | MSB24038P6 | 1.25 mm | 6 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Voltage | 10.8/12.0/12.6V (Min./Typ./Max.) | Input Current | 0.75/0.83A (Typ./Max.) |
| Consumption | 9.0/10.0W (Typ./Max.) |
AUO G170EG01 V104 Packing Details
| Package Box : | Amount | Box Size(L*W*H) | Weight |
| 8 pcs / box | 448×283×397 mm | 15.2 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G170EG01 V104. Please include your application and required quantity so we can confirm the applicable revision.
