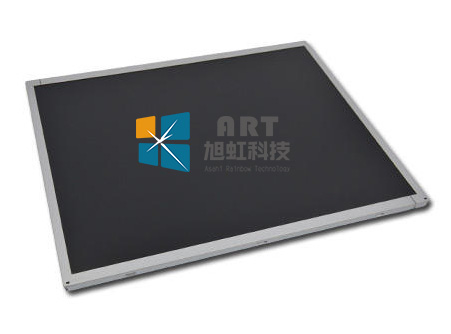

AUO G185HAN01.3 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G185HAN01.3 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 18.5inch | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight，Life>=50K hours,With LED Driver，Matte |
AUO G185HAN01.3 Optical Details
| Basic Information : | Luminance | 500cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.299; Wy:0.315 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7502K | White Variation | 1.18/1.25 (Typ./Max.)(9 points) |
AUO G185HAN01.3 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.071*0.213 (H*V) | Pixel Pitch(W×H) | 0.213*0.213 (H*V) [119PPI] |
| Physical Size : | Active Viewing(mm) | 408.96(H) *230.04(V) | Outline Dim.(mm) | 428.23(H) *252.87(V) |
| Bezel Area | - | Outline Depth | 9.2 (Typ.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | - | Surface | Antiglare, Hard coating (3H) |
AUO G185HAN01.3 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G185HAN01.3 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply |
- |
| Consumption | - | Signal Interface | eDP |
AUO G185HAN01.3 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 30K(Min.) Hours |
| Interface Features : | Position | - | Physical Type |
Connector |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | - |
AUO G185HAN01.3 Packing Details
| Package Box : | Quantity | Weight
| Box Size |
| 8pcs / box | - | 520*280*352 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G185HAN01.3. Please include your application and required quantity so we can confirm the applicable revision.
