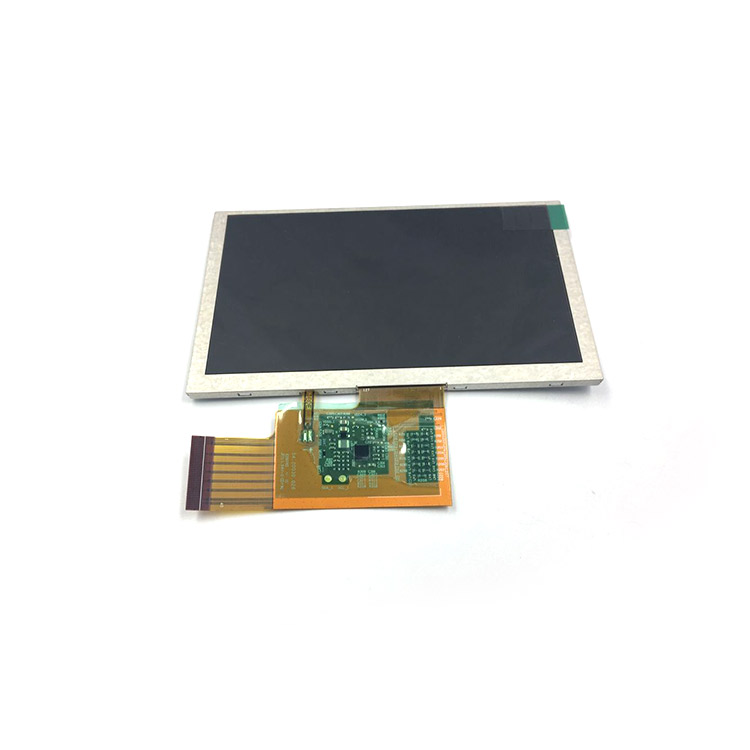

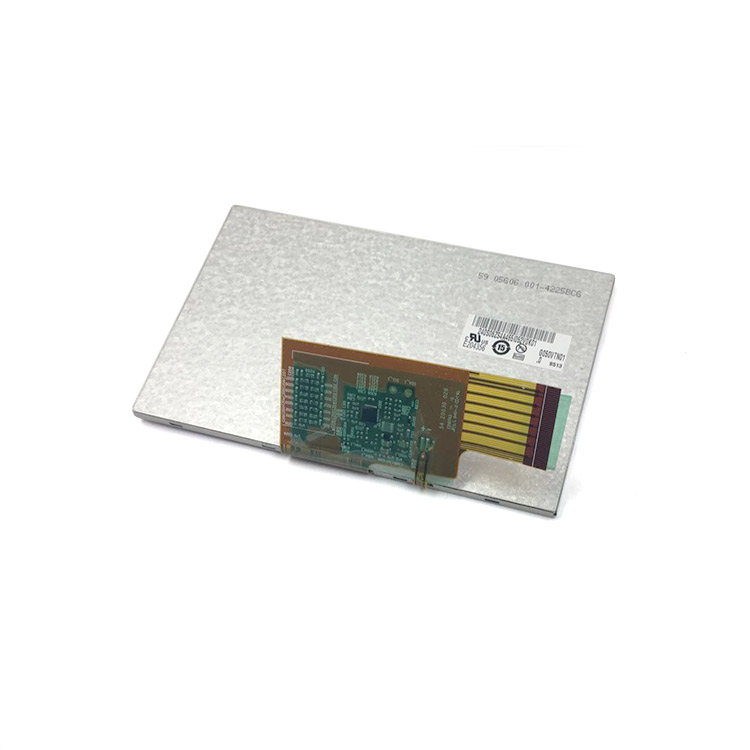

AUO 5inch G050TAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G050TAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Panel Size | 5.0inch | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | -20~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Srgb,Portrait type，High Brightness,WLED Backlight，Matte |
AUO 5inch G050TAN01.0 Optical Details
| Basic Information : | Luminance | 570 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 35(Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit ) |
| Color Temperature | 6485K | White Variation | 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 98% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 76% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO 5inch G050TAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 720(RGB)*1280, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.02875*0.08625 (H*V) | Pixel Pitch(W×H) | 0.08625*0.08625 (H*V) [294PPI] |
| Physical Size : | Active Viewing(mm) | 62.1(H) *110.4(V) | Outline Dim.(mm) | 66.7(H)*120.3(V) |
| Bezel Opening(mm) | - | Overall Depth(mm) | 1.75±0.1 mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 9:16 (H:V) | Orientation | Portrait type |
| Other Detail : | Weight | 65.0 (Typ.) | Treatment | Antiglare, Hard coating (3H) |
AUO 5inch G050TAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 1.65W (Max.) |
AUO 5inch G050TAN01.0 Interface Detail
| Signal Electrical : | Input Current | 30/5mA (Typ.)(IDDI/ICI) | Input Voltage | 1.8/2.8V (Typ.)(VDDI/VCI) |
| Consumption | 0.06/1.06W (Typ./Max.) | Signal Interface | MIPI (4 data lanes) |
| Logic Voltage : | - |
| Interface Features : | Position
| - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | 55650-0388 | | 30 pins | 1 pcs | |
AUO 5inch G050TAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 10K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 14.5/15.5V (Typ./Max.) | Current Supply | 25.4mA (Typ.) |
| Consumption | 0.74/0.79W (Typ./Max.) |
| Backlight Driver : | No |
AUO 5inch G050TAN01.0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 138 pcs / box | 520*340*250 mm | 8.60 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G050TAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
