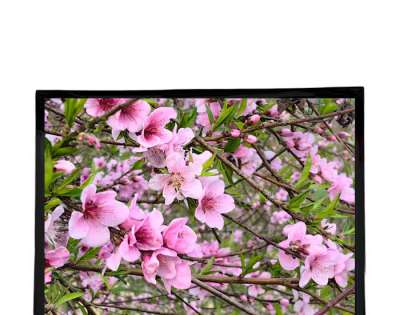

AUO G064XAN01.0 6.4-inch XGA AHVA Industrial LCD
AUO Display+ G064XAN01.0 is a 6.4-inch industrial TFT-LCD module with 1024 x 768 XGA resolution, AHVA normally-black display mode, 390 cd/m2 typical center luminance and wide viewing angles. The module combines a 30-pin LVDS signal interface, 3.3 V panel logic supply and an integrated 12 V LED backlight driver connection.
The technical data below was reviewed against the AUO Display+ Final Specification, Version 1.5, approved August 12, 2024.
Model control: Order and engineering records should use the complete model G064XAN01.0. Confirm the model and specification revision against the rear label and the latest controlled document before design-in, repair or replacement approval.
Reviewed Specifications
| Manufacturer / Model | AUO Display+ / G064XAN01.0 | Display size | 6.4 inch |
|---|
| Resolution | 1024 x 768 (XGA) | Display mode | AHVA, normally black |
|---|
| Brightness | 390 cd/m2 typical; 310 cd/m2 minimum | Contrast ratio | 1000:1 typical; 800:1 minimum |
|---|
| Viewing angle | Right/Left/Up/Down 85 degrees typical, 80 degrees minimum (CR 10) | Response time | 15 ms rising + 10 ms falling; 25 ms total typical |
|---|
| Uniformity | 80% typical; 75% minimum | Color gamut | 50% typical |
|---|
| Colors | 16.7 million, 8-bit | Pixel arrangement | RGB vertical stripe |
|---|
| Active area | 129.792 x 97.344 mm | Pixel pitch | 0.12675 x 0.12675 mm |
|---|
| Outline dimensions | 140.762 x 110.524 x 6.2 mm | Weight | 110 g maximum |
|---|
| Signal interface | 30-pin LVDS, JEIDA mapping, DE mode | Panel logic supply | 3.3 V typical |
|---|
| Signal connector | Hirose FH75-60(30)SA-1SH(16) |
|---|
| Backlight input | 12 V typical; 1.32 W typical at 100% PWM duty | Backlight life | 50,000 hours minimum at IF 20 mA and Ta 25 degrees C |
|---|
| Typical module power | 2 W provisional value: LCD 0.55 W + LED BLU 1.45 W | Surface treatment | Anti-glare, 3H hardness, 28.5% haze |
|---|
| Operating temperature | -20 to +70 degrees C | Storage temperature | -30 to +80 degrees C |
|---|
| Compliance | RoHS compliant |
|---|
Power-data note: The Version 1.5 specification marks the 2 W total module power value as subject to update after first-sample measurement. Use the latest approved specification and measured sample data for power-budget approval.
30-pin LVDS and Backlight Integration

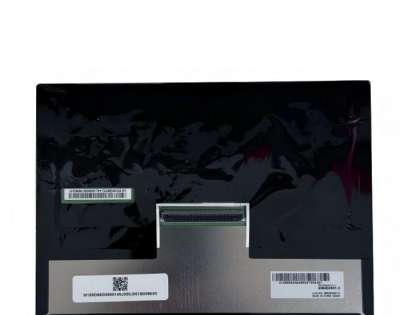

The 30-pin connector carries both the TFT-LCD and LED-backlight signals. Pins 1-2 provide the 12 V backlight supply, pins 9-10 provide the 3.3 V panel logic supply, and the connector also carries PWM dimming, backlight enable, LVDS data, LVDS clock and reverse-scan control.
- LVDS input is specified for 8-bit data using JEIDA mapping and DE mode.
- Backlight input range is 10.8 to 13.2 V, with 12 V typical.
- PWM dimming frequency is specified from 200 to 1000 Hz, with a 10% to 100% duty range.
- Do not leave the PWM signal floating; follow the specification's control and power-sequence requirements.
- Connect or disconnect the module only while power is off.
Mechanical and Optical Design Review
The module outline is 140.762 x 110.524 x 6.2 mm and the active area is 129.792 x 97.344 mm. Before approving a replacement, compare the complete drawing, connector location, insertion direction, mounting clearances and active-area position against the host equipment.
The anti-glare 3H surface and 390 cd/m2 typical center luminance support evaluation for indoor industrial displays. Readability in strong ambient light depends on the cover lens, optical bonding, enclosure reflections and the final backlight setting; it must be validated in the complete assembly.
Temperature and Reliability Notes
- Specified operating range: -20 to +70 degrees C.
- Specified storage range: -30 to +80 degrees C.
- Relative-humidity range: 5% to 95%, with no condensation and a 39 degrees C maximum wet-bulb condition.
- The specification guarantees operation across the operating-temperature range, while optical and display performance is evaluated at 25 degrees C.
- High current, ambient temperature or humidity can reduce LED operating life.
Design-in and Replacement Checklist
- Confirm the complete model G064XAN01.0 and the applicable specification revision.
- Verify the 140.762 x 110.524 x 6.2 mm outline, active area, mounting details and connector position.
- Check all 30 connector pins, JEIDA LVDS mapping, DE timing and reverse-scan control.
- Provide separate 3.3 V panel logic and 12 V backlight supplies within the specified limits.
- Apply the documented power-on and power-off sequence and confirm PWM/enable behavior.
- Validate optical performance, thermal behavior, EMI and mechanical fit in the final equipment.
Replacement warning: A panel with the same 6.4-inch size and XGA resolution is not automatically a drop-in replacement. Connector type, pin assignment, LVDS mapping, timing, supply voltages, outline, mounting, backlight control and optical performance must all be compared before testing.
Availability and Document Request
Production status, stock, MOQ and lead time are not established by the technical specification and must be confirmed at the time of inquiry. For a quotation or compatibility review, provide the exact model, required quantity, destination country, application, requested delivery date and clear photos of the existing panel label.
Browse more AUO industrial LCD panels or view the 6.4-inch and 6.5-inch LCD category.
Frequently Asked Questions
What is the native resolution of G064XAN01.0?
The native resolution is 1024 x 768 XGA with an RGB vertical-stripe pixel arrangement.
What display technology does this module use?
The reviewed specification identifies an AHVA normally-black display mode with 85-degree typical viewing angles in all four directions.
Does the 30-pin connector carry both panel and backlight power?
Yes. The specified connector carries 3.3 V panel logic, 12 V backlight power, PWM and enable control, LVDS data, clock and related control signals. Always verify the complete pin assignment before connection.
Is G064XAN01.0 guaranteed to be in production or in stock?
No production or inventory claim is made here. Current availability, MOQ and lead time require written confirmation when you inquire.
What information is needed for a quotation or replacement review?
Send the full model, rear-label photos, quantity, destination, application, requested date and any cable, touch-panel or controller requirements.
