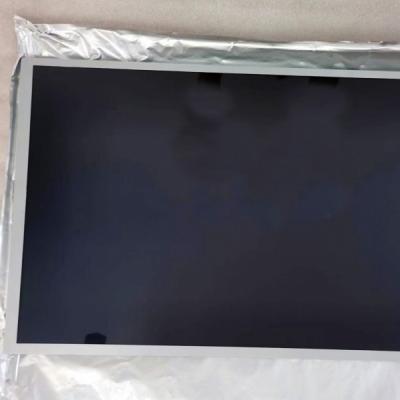

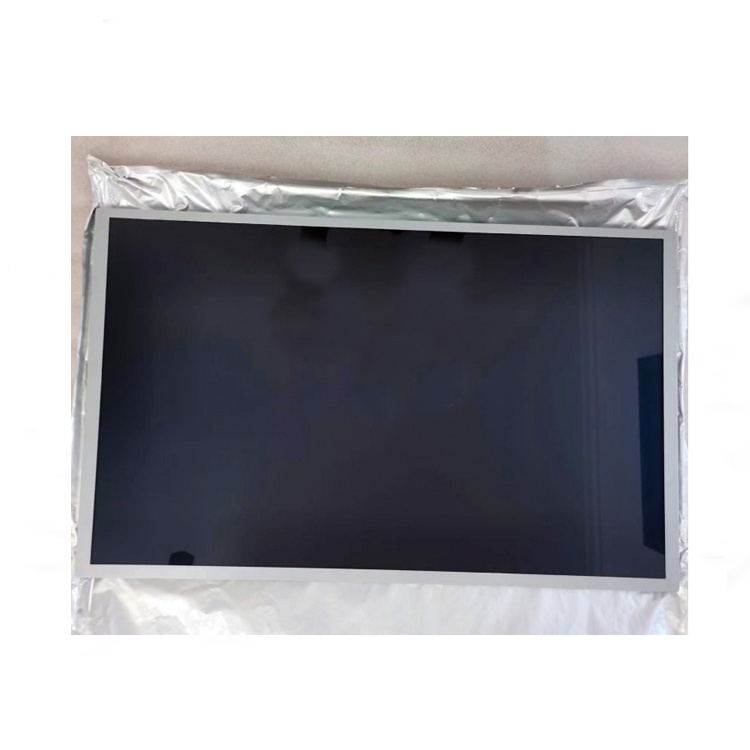

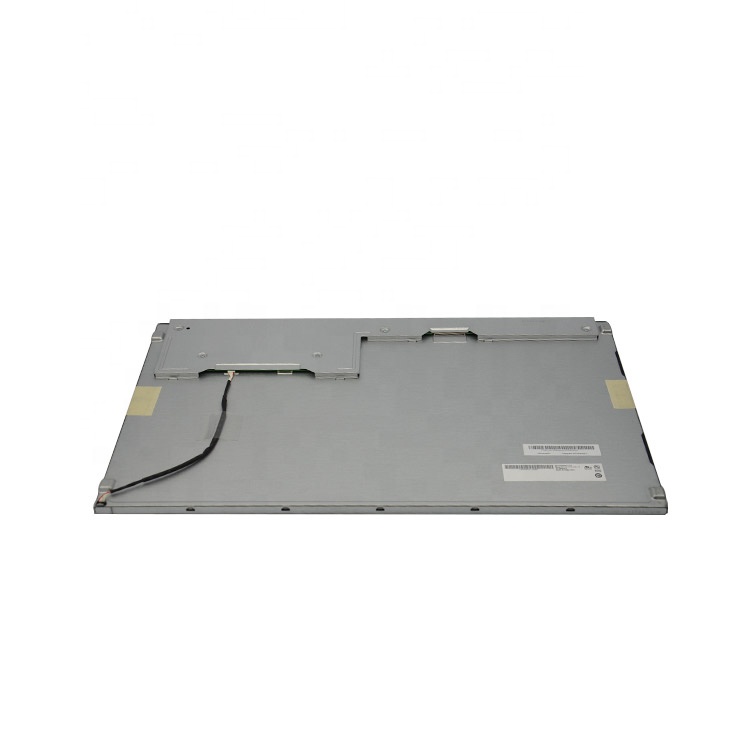

1.AUO G320ZAN02.4 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G320ZAN02.4 |
| Diagonal Size | 32.0inch | Application | Industrial，Medical Imaging |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | RoHS | Vibration Level | 1.0G (9.8 m/s²) |
| Specific Features : | DCI-P3，Srgb,WLED Backlight，With LED Driver，Reverse I/F,10 bit，Matte |
2.AUO G320ZAN02.4 Mechanical Details
| Pixel Features : | Pixel Format | 3840(RGB)*2160, UHD | Dot Pitch | 0.0615*0.1845 mm (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch (mm) | 0.1845*0.1845 mm [137PPI] |
| Mechanical Size : | Active Viewing | 708.48(W)*398.52(H) mm | Overall Dim. | 727.3(W)*424.5(H) mm |
| Bezel Opening | 714.48(W)*404.52(H) mm | Overall Depth | 20.48±0.5 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | |
| Fixation : | Rear mounting holes |
| Other Detail : | Mass | 4.63Kgs (Typ.) | Surface | Antiglare |
3.AUO G320ZAN02.4 Optical Details
| Brightness | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AMVA, Normally Black, Transmissivee |
| Viewing Direction | Symmetry | Response Time | 22 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (10-bit) |
| Color Temperature | 6485K | Uniformity | 1.28 (Max.)(9 points) |
| 1931 Color Gamut : |
NTSC Ratio | 96% | sRGB | 100% coverage |
| Adobe RGB | 86% coverage | DCI-P3 | 95% coverage |
| Rec.2020 | 71% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.AUO G320ZAN02.4 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 76W (Max.) |
5.AUO G320ZAN02.4 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 30K(Min.) (Hours) |
| Replacement | - | Lamp Shape | - | Position | Edge light type |
| Interface Features : | Position
| - | Physical Type | Connector |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | S14B-PH-SM6-K-TB | 2 pcs | 2.0 mm | 14 pins | |
| Backlight Driver : | With LED Driver |
| Backlight Driver : | Input Current | 2.35/2.82A (Typ./Max.) | Input Voltage | 24.0±2.4V |
6.AUO G320ZAN02.4 Interface Details
| Signal Electrical : |
Input Current | 2.15/2.58A (Typ./Max.) | Input Voltage | 12.0V (Typ.) |
Consumption
| 26/31W (Typ./Max.) | Signal Interface | V-by-One 8 lane |
| Interface Features : | Position | Down middle of panel | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5mm | 51pins | |
7.AUO G320ZAN02.4 Packing Details
Package Box :
| Amount | Size (L*W*H) | Weight |
| 4 pcs / box | 820*220*535 mm | 21.5 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G320ZAN02.4. Please include your application and required quantity so we can confirm the applicable revision.
