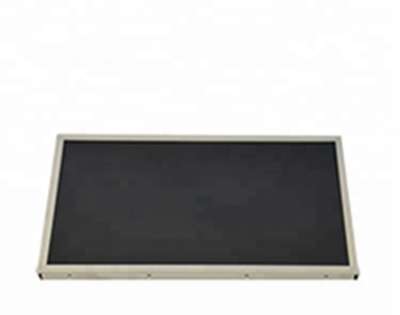

1.Innolux G101ICE-LH3 Application Details
Basic Information : | Brand | INNOLUX | Model | G101ICE-LH3 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 10.1" |
|
|
Environment : | Storage Temp. | -40 ~~ 85 °C | Operating Temp. | -30 ~~ 80 °C |
RoHS | RoHS |
|
|
Typical Features : | Wide Temperature，WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，6/8bit，Matte |
2.Innolux G101ICE-LH3 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch (H×V) | 0.0565×0.1695 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (H×V) | 0.1695×0.1695 mm [149PPI] |
Mechanical Size : | Active Area(H×V) | 216.96×135.6 mm | Bezel Area (H×V) | 218.96×137.6 mm |
Overall Dimension (H×V) | 230.7×152.55 mm | Overall Depth | 6.5±0.5 mm |
Outline Features : | Form Style | Flat Rectangle | Outline Shape |
|
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
Other Spec : | Mass | 300/315g (Typ./Max.) | Panel Cover | - |
Surface Treatment | Antiglare, Hard coating (3H) |
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
3.Innolux G101ICE-LH3 Optical Details
Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) (ms) |
Color Performance : | Support Color | 262K/16.7M (6-bit / 8-bit) | Color Coordinate | X:0.313; Y:0.329 |
Color Temperature | 6485K |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB Coverage | 96% |
Adobe RGB Coverage | 74% | DCI-P3 Coverage | 76% |
| Rec.2020 Coverage | 55% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
White Uniformity : | 1.43 (Max.)(5 points) |
4.Innolux G101ICE-LH3 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 6.0W (Typ.) |
5.Innolux G101ICE-LH3 Interface Details
Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 280/330mA (Typ./Max.) |
Signal Type : | LVDS (1 ch, 6/8-bit) |
| Signal Voltage | - |
Interface Features : | Position | - |
| Type | Connector |
Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
I-PEX | 20455-030E-76 | 1 pcs | 30 pins | 0.5 mm |
|
6.Innolux G101ICE-LH2 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time(Hours) | 50K(Min.) |
Interface Features : | Position | - |
| Type | Included in signal interface |
Backlight Driver : | With LED Driver |
WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption |
12.0V (Typ.) | 0.42/0.50A (Typ./Max.) | 5.0/6.0W (Typ./Max.) |
7.Innolux G101ICE-LH3 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 28 | 1 | 435×350×275 | N/A | 0.0419 |
