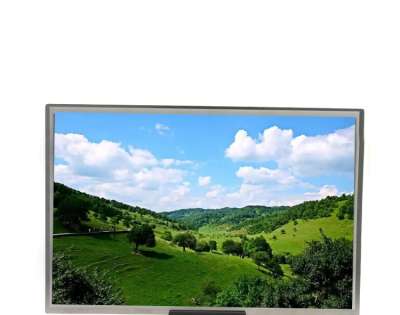

nnolux G101ICE-JN1 10.1 Inch LCD Display – 420 nits IPS MIPI Industrial Panel
Product Overview
The Innolux G101ICE-JN1 (also known as CMN8C01) is a 10.1-inch industrial-grade TFT-LCD display module manufactured by Innolux (Foxconn). This panel delivers WXGA resolution (1280×800) in a 16:10 widescreen format, making it an excellent choice for industrial control systems, medical equipment, portable terminals, and embedded applications requiring high image quality and reliability.
Key differentiator:
Equipped with AAS (IPS-like) wide viewing angle technology, this display offers 85/85/85/85° full viewing angles with no grayscale inversion effect. With 420 cd/m² high brightness, 1000:1 contrast ratio, and a 50,000-hour WLED backlight, the G101ICE-JN1 delivers exceptional visual performance for demanding industrial environments.
Key Features
Parameter | Specification |
Brand | Innolux (Chimei) |
Model | G101ICE-JN1 |
Screen Size | 10.1 inch |
Resolution | WXGA 1280 × 800 |
Pixel Density | 150 PPI |
Aspect Ratio | 16:10 |
Display Technology | a-Si TFT-LCD, AAS (IPS-like), Normally Black |
Brightness | 420 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 85°/85°/85°/85° (CR≥10) |
Response Time | 25 ms (Typ.)(Tr+Td) |
Display Colors | 16.7M (8-bit) |
Color Gamut | 50% NTSC |
Color Temperature | 6485K |
Interface | MIPI DSI (4 Lanes) |
Connector | 40 pins (Hosiden 196479-40041-3, 0.5mm pitch) |
Backlight Type | WLED, Edge light type (8S4P) |
Backlight Life | 50,000 hours (Min.) |
LED Driver | Not included (external driver required) |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -20°C ~ 60°C |
Vibration Resistance | 1.5G (14.7 m/s²) |
Active Area | 216.576 × 135.36 mm |
Outline Dimension | 228.26 × 141.86 mm |
Thickness | 3.49/5.74 mm (Typ./Max.) |
Surface Treatment | Anti-Glare (Haze 25%), Hard coating (3H) |
Weight | ≤ 180g |
Refresh Rate | 60Hz |
Power Consumption | ≤ 2.22W (Max.) |
Production Status | In Production |
Key Advantages
1. IPS-Level Wide Viewing Angle Technology
The G101ICE-JN1 incorporates AAS (Advanced Azimuthal Switching) technology—Innolux’s IPS-like solution—delivering 85/85/85/85° full viewing angles with excellent color stability. Key benefits include:
Excellent off-axis readability — no color shift or contrast loss from any angle
Superior color consistency — accurate colors across the entire viewing cone
Normally Black mode — deeper blacks and better contrast in dark environments
2. High Brightness & High Contrast (420 cd/m² / 1000:1)
The combination of 420 cd/m² high brightness and 1000:1 contrast ratio ensures:
Excellent visibility in high-ambient-light environments such as factory floors
Clear readability even under bright medical operating lights
Deep blacks and vivid colors for professional applications
3. WXGA Resolution & 16:10 Aspect Ratio
The 1280×800 resolution with 150 PPI pixel density and 16:10 aspect ratio delivers:
Crisp, detailed imagery for industrial HMI and medical imaging
Optimized document/code display — the 16:10 ratio provides extra vertical space
Sharp text rendering for data-intensive applications
4. MIPI Interface for Modern Integration
The MIPI DSI (4 Lanes) interface with 40-pin connector offers:
High-speed data transmission with lower EMI compared to parallel RGB
Fewer signal lines — simplified cable management
Excellent compatibility with modern ARM processors, SoCs, and embedded systems
Ideal for battery-powered portable devices — low power consumption
5. Long-Life Backlight (50,000 Hours)
The panel features a 50,000-hour WLED backlight life (8S4P configuration):
50,000-hour lifespan — suitable for 7+ years of continuous operation
Significantly reduces maintenance costs in always-on applications
Edge-type design — uniform illumination across the display
Wide input voltage (10.8~12V) — flexible power supply design
Note: This model does NOT include a built-in LED driver. An external backlight driver circuit is required.
6. Anti-Glare Surface Treatment
The matte anti-glare surface (Haze 25%) with 3H hard coating provides:
Reduced reflections in high-ambient-light environments
Scratch resistance for daily use durability in industrial settings
Enhanced readability under various lighting conditions
7. Ultra-Slim & Lightweight Design
With a maximum thickness of just 5.74mm and weight of ≤180g, the G101ICE-JN1 is ideal for:
Space-constrained handheld devices
Portable medical equipment
Weight-sensitive embedded applications
8. Industrial-Grade Durability
50,000-hour WLED backlight life — long-term reliability for continuous operation
1.5G vibration resistance (14.7 m/s²) — suitable for industrial equipment and transportation
0°C ~ 50°C operating temperature — reliable performance in indoor industrial environments
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
9. Low Power Consumption
≤2.22W maximum total power consumption
≤0.3W for logic system (3.3V)
≤1.92W for backlight (10.8~12V)
Ideal for battery-powered and energy-efficient applications
Applications
The Innolux G101ICE-JN1 is designed for a wide range of industrial, medical, and commercial applications:
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, PLC terminals |
Medical Equipment | Patient monitoring systems, diagnostic displays, portable medical devices |
Portable Terminals | Handheld data loggers, barcode scanners, inspection devices |
Embedded Systems | Industrial IoT gateways, smart home controllers |
Self-Service Kiosks | Information kiosks, ticketing machines, interactive displays |
Test & Measurement | Lab equipment displays, oscilloscopes, analyzers |
Quality Assurance
We supply 100% original Innolux displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | Innolux G101ICE-JN1 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
