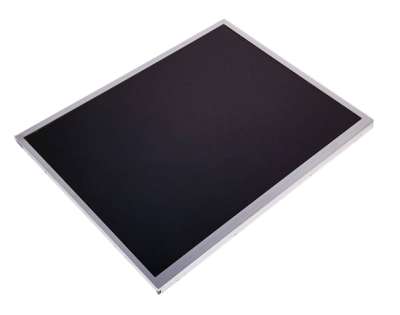

1.Innolux G104ACE-LH2 Application Details
Basic Information : | Brand | INNOLUX | Model | G104ACE-LH2 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 10.4" |
|
|
Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
RoHS | RoHS |
|
|
Typical Features : | Wide Temperature，WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，6/8bit，Matte |
2.Innolux G104ACE-LH2 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(H×V) | 0.088×0.264 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (H×V) | 0.264×0.264 mm [96PPI] |
Mechanical Size : | Active Area (H×V) | 211.2×158.4 mm | Bezel Area (H×V) | 214.2×161.6 mm |
Overall Dimension (H×V) | 243×184 mm | Overall Depth | 6.2/8.5 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Plate Thickness | 0.50+0.50 mm |
Aspect Ratio | 4:3 (H:V) | Orientation | Portrait type |
Other Spec : | Mass | 400/420g (Typ./Max.) | Panel Cover | - |
Other Features : | Weight | 400/420g (Typ./Max.) | Surface | Antiglare, Hard coating (2H) |
Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
3.Innolux G104ACE-LH2 Optical Details
Basic Information : | Luminance(cd/m²) | 400(Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) (ms) |
Color Performance : | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | Color Coordinate | Wx:0.313; Wy:0.329 |
Color Temperature | 6485K |
1931 Color Gamut : | NTSC Ratio | 71% | sRGB Coverage | 94% |
Adobe RGB Coverage | 72% | DCI-P3 Coverage | 74% |
| Rec.2020 Coverage | 53% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
White Uniformity : | 1.25/1.39 (Typ./Max.)(5 points) |
4.Innolux G104ACE-LH2 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 5.0W (Typ.) |
5.Innolux G104ACE-LH2 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 150/200mA (Typ./Max.) |
Signal Type : | LVDS (1 ch, 6/8-bit) |
| Consumption | - |
Interface Features : | Position | - |
| Type | Connector |
Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
STM | MSAK24025P30MB | 1 pcs | 30 pins | 0.5 mm |
|
6.Innolux G104ACE-LH2 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time(Hours) | 50K(Min.) |
Interface Features : | WLED Driver State | With LED Driver | Physical Type | Included in signal interface | Interface Position | - |
Backlight Driver : | Input Voltage | 12.0±1.2V | Input Current | 0.35/0.41A (Typ./Max.) | Power Consumption | 4.2W (Typ.) |
7.Innolux G104ACE-LH2 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 16 | 1 | 435×350×275 | 9.2 | 0.0419 |
