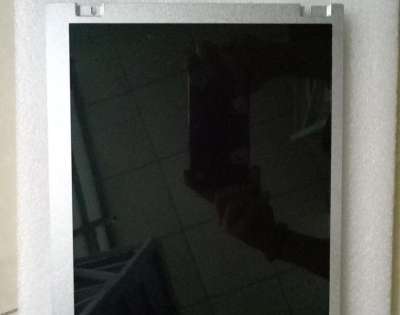

1.Innolux G104ACJ-PH1 Application Details
Basic Information : | Brand | INNOLUX | Model | G104ACJ-PH1 |
Type | a-Si TFT-LCD , CELL | Used For | Industrial |
Screen Size | 10.4" |
|
|
Environment : | Storage Temp. | -40 ~~ 90 °C | Operating Temp. | -30 ~~ 80 °C |
RoHS | RoHS |
|
|
Typical Features : | Portrait type，Wide Temperature，U/D,L/R Reverse，Matte |
2.Innolux G104ACJ-PH1 Mechanical Details
Pixel Features : | Resolution | 960(RGB)×1280, Quad-VGA | Dot Pitch | 0.055×0.165 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (H×V) | 0.165×0.165 mm (H×V) [153PPI] |
Mechanical Size : | Active Area | 158.4×211.2 mm (H×V) | Bezel Area (H×V) | - |
Overall Dimension | 168.93×222.63 mm (H×V) | Overall Depth | 1.27 (Typ.) mm |
Outline Features : | Form Style | Flat Rectangle | Plate Thickness | 0.50+0.50 mm |
Aspect Ratio | 3:4 (H:V) | Orientation | Portrait type |
Other Spec : | Mass | 300/315g (Typ./Max.) | Panel Cover | - |
Other Features : | Weight | - | Surface | Antiglare, Hard coating (3H) |
3.Innolux G104ACJ-PH1 Optical Details
Basic Information : | Luminance(cd/m²) | 0 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) (ms) |
Color Performance : | Support Color | 16.7M (8-bit) | Color Coordinate | Wx:0.329; Wy:0.377 |
Color Temperature | 5597K |
1931 Color Gamut : | NTSC Ratio | 63% | sRGB Coverage | 83% |
Adobe RGB Coverage | 65% | DCI-P3 Coverage | 65% |
| Rec.2020 Coverage | 47% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | No | Transmittance | 4.0% (Typ.)(with Polarizer) |
4.Innolux G104ACJ-PH1 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Power Consumption : | COG Built-in 2 source chips |
5.Innolux G104ACJ-PH1 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 150/200mA (Typ./Max.) |
Signal Type : | LVDS (1 ch, 8-bit) |
| Consumption | 0.5/0.66W (Typ./Max.) |
Interface Features : | Position | - |
| Type | Connector |
Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
HRS | FH52-50S-0.5SH | 1 pcs | 50 pins | 0.5 mm |
|
6.Innolux G104ACJ-PH1 Backlight Details
Backlight Features: | Shape | - | Type | No B/L | Position | - |
Replacement | - | Quantity | - | Life Time(Hours) | - |
Interface Features : | Position | - |
| Type | - |
Backlight Driver : | No |
7.Innolux G104ACJ-PH1 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 56 | 1 | 540×450×320 | 13.39 | 0.0778 |
