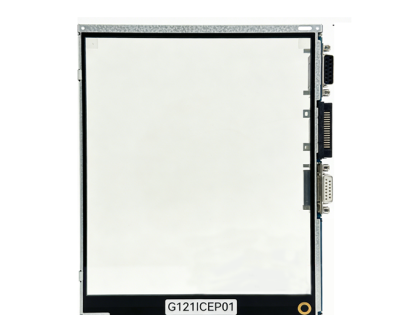

1.Innolux G121ICE-P01 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G121ICE-P01 |
Diagonal Size | 12.1" | Application | Industrial |
Panel Type | a-Si TFT-LCD , CELL |
|
|
Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 85 °C |
RoHS State | RoHS |
|
|
Specific Features : | Wide Tenperature，6/8bit，Matte |
2.Innolux G121ICE-P01 Mechanical Details
Pixel Features : | Pixel Format | 1280(RGB)×800, WXGA | Dot Pitch | 0.068×0.204 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] |
Mechanical Size : | Display Area | 261.12×163.2 mm (H×V) | Bezel Area | - |
Outline Dim. | 270.37×172.45 mm (H×V) | Outline Depth | 1.25±0.13 mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:10 (H:V) | Plate Thickness | 0.50+0.50 mm |
Other Features : | Weight | 150g (Typ.) | Surface | Antiglare, Hard coating (3H) |
3.Innolux G121ICE-P01 Optical Details
Basic Information : | Brightness | 0 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 15/12 (Typ.)(Tr/Td) ms |
Color Performance : | Chromaticity | Wx:0.312; Wy:0.359 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6327K | Uniformity | - |
1931 Color Gamut : | NTSC Ratio | 70% | sRGB | 89% coverage |
Adobe RGB | 72% coverage | DCI-P3 | 71% coverage |
Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | No | Transmittance | 4.0% (Typ.)(with Polarizer) |
4.Innolux G121ICE-P01 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5.Innolux G121ICE-P01 Backlight Details
Back-light Features : | Lamp Type | No B/L | Amount | - | Life Time | - |
Replacement | - | Lamp Shape | - | Position | - |
6.Innolux G121ICE-P01 Interface Detail
Signal Systerm : | LVDS (1 ch, 6/8-bit) |
| Logic Voltage | - |
Signal Electrical : | Voltage Input | 3.3V (Typ.) |
| Current Input | 560/675mA (Typ./Max.) |
Interface Features : | Type | Connector |
| Position | - |
|
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
P-TWO | 187114-30091 | 1.0 mm | 30 pins | 1 pcs |
|
7.Innolux G121ICE-P01 Carton Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Box | 56 | 1 | 650×495×320 | 16.40 | 0.1030 |
