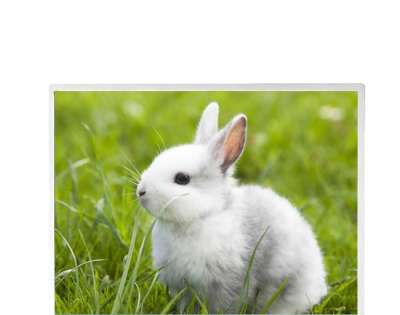

1.Innolux G121XCE-LH1 Application Details
Basic Detail : | Panel Brand | INNOLUX | Panel Model | G121XCE-LH1 |
Diagonal Size | 12.1" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -40 ~ 80 °C |
RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) |
| Specific Features : | Wide Temperature，Ultra High Brightness,WLED Backlight,Life≥50K hours,With LED Driver,180°Reverse，6/8bit，Matte |
|
2.Innolux G121XCE-LH1 Mechanical Details
Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.080×0.240 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.240×0.240 mm (H×V) [105PPI] |
Mechanical Size : | Display Area | 245.76×184.32 mm (H×V) | Bezel Area | 249×187.5 mm (H×V) |
| Outline Dim. | 260.5×204 mm (H×V) | Outline Depth | 7.9/10.4 (Typ./Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3 (H:V) | Shape Style |
|
Holes & Brackets : | Side mounting holes (4-M2.0) on left, right, up, down bezel |
Other Features : | Weight | 515/535g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
3.Innolux G121XCE-LH1 Optical Details
Basic Information : | Brightness | 1300cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) (ms) |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 93% coverage |
Adobe RGB | 72% coverage | DCI-P3 | 75% coverage |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4.Innolux G121XCE-LH1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 19.42W (Typ.) |
5.Innolux G121XCE-LH1 Backlight Details
Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
Replacement | - | Amount | - | Position | Edge light type |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 1.18/1.48/1.75A (Min./Typ./Max.) |
Consumption | 14/17.7/21W (Min./Typ./Max.) |
6.Innolux G121XCE-LH1 Interface Details
Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - |
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 520/620mA (Typ./Max.) |
Interface Features : | Type | Connector | Position | - |
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSAK24025P30MB | 0.5 mm | 30 pins | 1 pcs |
|
7.Innolux G121XCE-LH1 Carton Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Outer box | 18 | 1 | 465×362×314 | 10.90 | 0.0529 |
