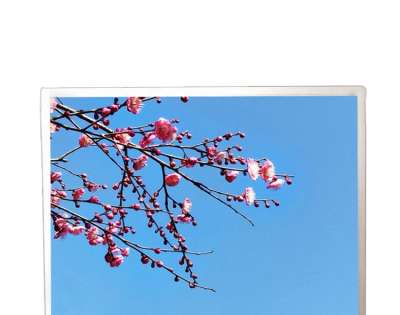

Innolux G150XCE-EMB 15.0 Inch LCD Display – eDP Industrial Panel with AAS Technology
Product Overview
The Innolux G150XCE-EMB is a 15.0-inch industrial-grade TFT-LCD display module manufactured by Innolux. This panel delivers XGA resolution (1024×768) in a classic 4:3 aspect ratio, making it an excellent choice for industrial control systems, medical equipment, outdoor terminals, and embedded applications requiring high reliability and wide temperature tolerance .
Key differentiator: The G150XCE-EMB features an eDP (Embedded DisplayPort) 1 Lane interface—a modern high-speed interface that simplifies integration with current-generation processors and embedded systems. With 400 cd/m² high brightness, 1000:1 contrast ratio, AAS wide viewing angle technology providing full 89/89/89/89° viewing angles, and a 50,000-hour WLED backlight with built-in LED driver, this panel delivers exceptional performance for demanding industrial environments .
Key Features
Parameter | Specification |
Brand | Innolux (Chimei) |
Model | G150XCE-EMB |
Screen Size | 15.0 inch |
Resolution | XGA 1024 × 768 |
Pixel Density | 85 PPI |
Aspect Ratio | 4:3 |
Display Technology | a-Si TFT-LCD, AAS, Normally Black, Transmissive |
Brightness | 400 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (CR≥10) |
Response Time | 25 ms (Typ.)(Tr+Td) |
Display Colors | 16.7M (8-bit) |
Color Gamut | 72% NTSC |
Color Temperature | 6485K |
Interface | eDP (1 Lane), eDP1.2 |
Connector | I-PEX 20455-030E-76 (30 pins, 0.5mm pitch) |
Backlight Type | WLED, Edge light type |
Backlight Life | 50,000 hours (Min.) |
LED Driver | Built-in |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | -20°C ~ 70°C |
Storage Temperature | -30°C ~ 70°C |
Vibration Resistance | 1.5G (14.7 m/s²) |
Active Area | 304.128 × 228.096 mm |
Outline Dimension | 314.13 × 245.3 × 6.64 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating (3H) |
Refresh Rate | 60Hz |
Logic Voltage | 3.3V (Typ.) |
Logic Power | 1.8W (Typ.) |
Backlight Voltage | 12.0±1.2V |
Backlight Current | 0.8~1.0A |
Total Power | 11.4W (Typ.) / 13.8W (Max.) |
Sunlight Readability | Supported (with optional anti-glare cover glass) |
Production Status | In Production |
Key Advantages
1. eDP Interface – Modern Industrial Connectivity
The G150XCE-EMB features an eDP (Embedded DisplayPort) 1 Lane interface with eDP1.2 standard . Key benefits include:
High-speed data transmission — HBR1 (1.62 Gbps/lane) for smooth video playback
Fewer signal lines — simplified cable management and reduced EMI
Modern compatibility — ideal for current-generation ARM processors, SoCs, and embedded systems
Built-in backlight control — backlight signals integrated into the eDP connector
2. AAS Wide Viewing Angle Technology
The G150XCE-EMB incorporates AAS (Advanced Azimuthal Switching) technology—Innolux's IPS-like solution—delivering full 89/89/89/89° viewing angles . Key benefits include:
Excellent off-axis readability — no color shift or contrast loss from any angle
Superior color consistency — accurate colors across the entire viewing cone
Normally Black mode — deeper blacks and better contrast in dark environments
No grayscale inversion — unlike conventional TN panels
3. Wide Operating Temperature (-20°C to 70°C)
With an industry-leading operating temperature range of -20°C to 70°C and storage temperature of -30°C to 70°C, this panel is specifically designed for harsh environment applications :
-20°C cold start validated for cold storage and winter outdoor installations
70°C high-temperature operation — suitable for industrial facilities and outdoor kiosks
1.5G vibration resistance — for transportation and industrial equipment
4. High Brightness & Excellent Contrast (400 cd/m² / 1000:1)
The combination of 400 cd/m² high brightness and 1000:1 contrast ratio ensures :
Excellent visibility in high-ambient-light environments such as factory floors
Clear readability even under bright outdoor conditions
Deep blacks and vivid colors for professional applications
5. Long-Life Backlight with Built-in LED Driver (50,000 Hours)
The panel features a 50,000-hour WLED backlight life with a built-in LED driver :
50,000-hour lifespan — suitable for 7+ years of continuous operation
Built-in LED driver — simplifies system integration, saves BOM cost and PCB space
No external driver design required — plug-and-play backlight solution (12.0V input)
Ideal for 24/7 industrial operation — reliable performance for always-on applications
6. XGA Resolution & 4:3 Classic Industrial Aspect Ratio
The 1024×768 XGA resolution with 85 PPI pixel density and 4:3 aspect ratio delivers :
Crisp, detailed imagery for industrial HMI and medical imaging
Standard industrial format — perfect fit for legacy and new industrial applications
No awkward scaling — seamless compatibility with existing software interfaces
7. Wide Color Gamut (72% NTSC)
The G150XCE-EMB delivers 72% NTSC color gamut coverage :
Vibrant, accurate colors — superior to standard industrial panels (typically 50-60% NTSC)
16.7M colors (8-bit) for smooth color gradations
6485K color temperature for neutral white balance
8. Anti-Glare Surface Treatment
The matte anti-glare surface with 3H hard coating provides :
Reduced reflections in high-ambient-light environments
Scratch resistance for daily use durability in industrial settings
Enhanced readability under various lighting conditions
6. XGA Resolution & 4:3 Classic Industrial Aspect Ratio
The 1024×768 XGA resolution with 85 PPI pixel density and 4:3 aspect ratio delivers :
Crisp, detailed imagery for industrial HMI and medical imaging
Standard industrial format — perfect fit for legacy and new industrial applications
No awkward scaling — seamless compatibility with existing software interfaces
7. Wide Color Gamut (72% NTSC)
The G150XCE-EMB delivers 72% NTSC color gamut coverage :
Vibrant, accurate colors — superior to standard industrial panels (typically 50-60% NTSC)
16.7M colors (8-bit) for smooth color gradations
6485K color temperature for neutral white balance
8. Anti-Glare Surface Treatment
The matte anti-glare surface with 3H hard coating provides :
Reduced reflections in high-ambient-light environments
Scratch resistance for daily use durability in industrial settings
Enhanced readability under various lighting conditions
Applications
The Innolux G150XCE-EMB is designed for a wide range of industrial, medical, and commercial applications requiring high reliability and wide temperature tolerance :
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, PLC terminals,SCADA systems |
Medical Equipment | Patient monitoring systems, diagnostic displays, medical imaging |
Outdoor Terminals | EV charging station displays, ticketing machines, outdoor kiosks |
Transportation | Industrial IoT gateways, smart home controllersAGV on-board terminals, bus information displays, fleet management terminals |
Embedded Systems | Industrial IoT gateways, smart factory controllers |
Test & Measurement | Lab equipment displays, oscilloscopes, analyzers |
Power Monitoring | Smart grid control systems, power plant SCADA displays |
Quality Assurance
We supply 100% original Innolux displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | Innolux G150XCE-EMB |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between INNOLUX G150XCE-EMB and models of the same series/size:
Comparison item | G150XCE-EMB | Ordinary 15-inch industrial screen | Advantages Description |
Interface | eDP (1 Lane) | Typically LVDS | Modern interfaces feature fewer signal lines and improved compatibility |
Brightness | 400 cd/m² | 250-350 cd/m² | Higher brightness, suitable for high ambient light scenes |
display technology | AAS (IPS level) | Generally TN | Full-view, no grayscale inversion |
Operating Temperature | -20°C ~ 70°C | 0°C ~ 50°C | Broader adaptability to low temperatures |
Backlight lifespan | 50,000 hours | 30,000-50,000 hours | Long lifespan, suitable for continuous operation |
LED driver | built-in | partially needs to be externalized | Simplify the design to save space |
Contrast | 1000:1 | 600-1000:1 | High contrast, more vivid colors |
Aspect ratio | 4:3 | 4:3 Or 16:9 | Classic industrial proportion |
